Edgeboard Connectors Overview

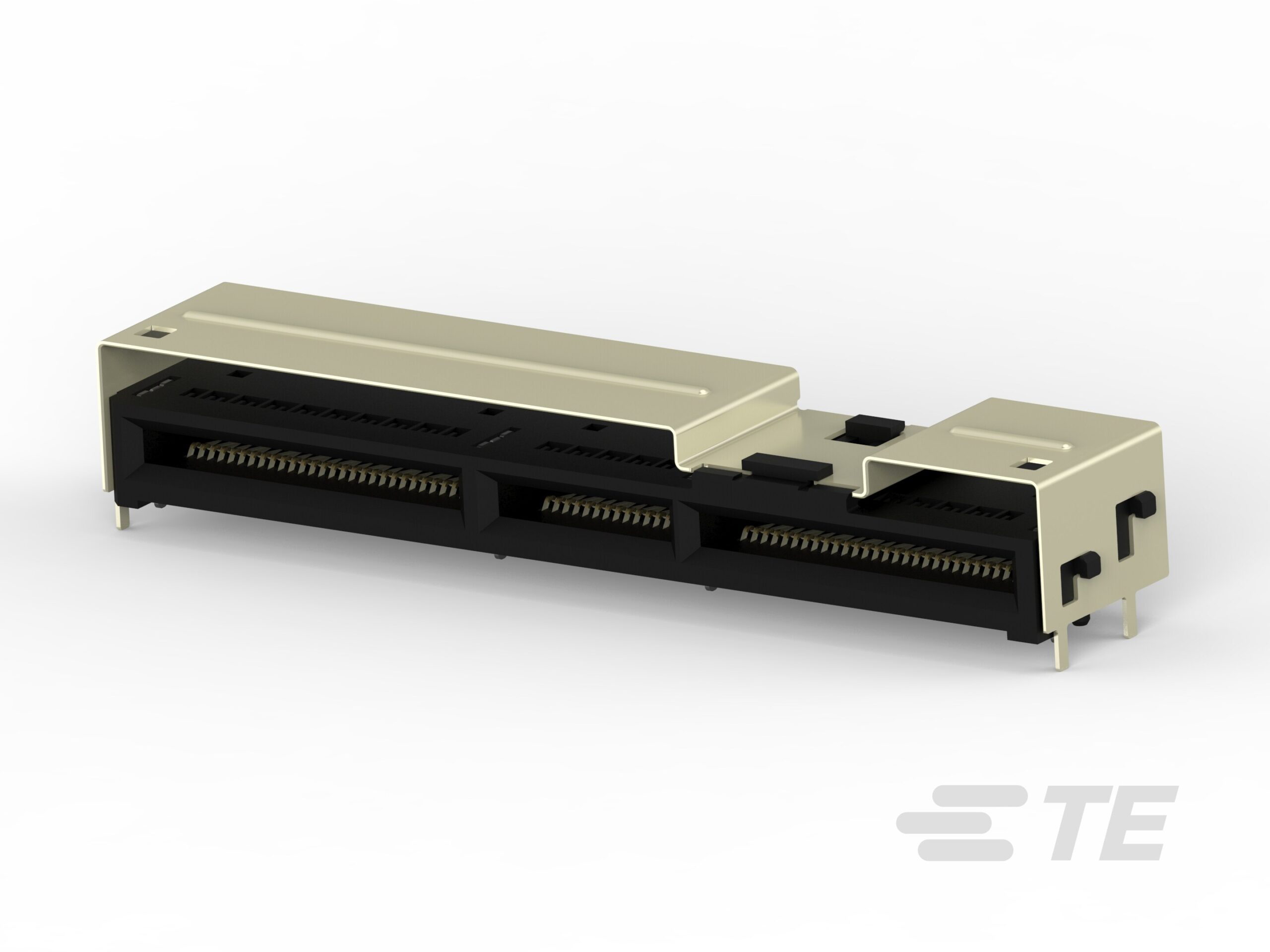

The TE Connectivity AMP Connectors part number 2332205-4 is a standard card edge connector assembly. It features a right-angle receptacle configuration with 140 positions. The contact finish is silver-plated, designed for reliable signal transmission in high-density applications. This component is engineered for vertical mating with card edge PCBs, providing secure mechanical retention and electrical connectivity within electronic systems requiring robust interconnect solutions.

Edgeboard Connectors Feature Summary

• Right-angle receptacle design for compact board integration
• Silver-plated contacts for corrosion resistance
• High-density 140-position configuration

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Computing hardware motherboard connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet to ensure compatibility with mating cards. Confirm that the right-angle orientation matches the PCB layout requirements. Check for any recent product change notices or obsolescence alerts from TE Connectivity before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, right-angle card edge interface is required. Ensure the mating card thickness aligns with the connector's specification. Consider thermal management needs due to the high density of contacts. Verify that the silver plating meets the environmental and conductivity requirements of the target application.

Edgeboard Connectors Part Context

This part belongs to the standard card edge connector family from TE Connectivity. It complements other variants in the series that may differ in position count, angle, or contact finish. The 140-position design supports complex signal routing in space-constrained environments typical of modern electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult TE Connectivity official documentation for direct substitute part numbers. Generic equivalents may not match the precise mechanical tolerances or contact material specifications required for reliable performance in high-density applications.
