2332205-9

Edgeboard Connectors Overview

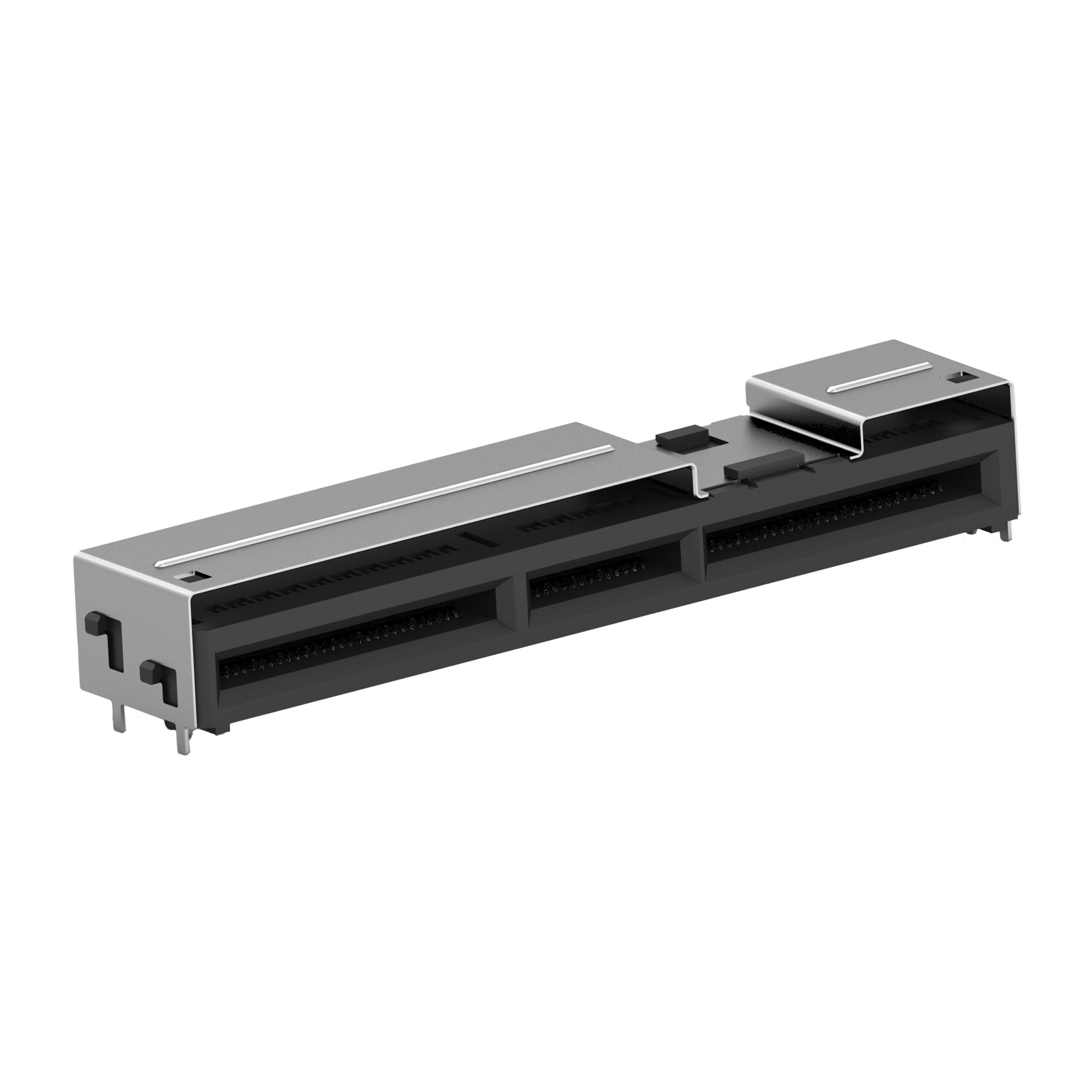

The TE Connectivity AMP Connectors 2332205-9 is a standard card edge connector receptacle assembly featuring right-angle mounting. It supports 140 positions with a silver finish and belongs to the Sliver 2.0 series. The component utilizes cut tape packaging for distribution. Factory packaging quantities are specified as 350 units per reel. This product falls under the standard card edge connectors category and is manufactured by TE Connectivity.

Edgeboard Connectors Feature Summary

• Right-angle receptacle assembly design for board-to-board connectivity
• High-density 140-position configuration within the Sliver 2.0 series
• Silver-plated contacts for reliable signal transmission

Edgeboard Connectors Applications

• High-density electronic interconnect systems
• Industrial control boards requiring right-angle mounting
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify RoHS compliance status through official documentation before integration. Confirm that the cut tape packaging aligns with automated assembly requirements. Check current supply restrictions, as availability may be limited in specific regions. Ensure the right-angle orientation matches the PCB layout constraints. Validate the 140-pin count against system specifications.

Edgeboard Connectors Selection Notes

Select this model when a high-pin-count right-angle card edge solution is required. The Sliver 2.0 series offers compact form factors for dense layouts. Verify compatibility with mating card edge thicknesses. Consider the silver plating for corrosion resistance in standard environments. Ensure the right-angle footprint fits within the mechanical enclosure limits.

Edgeboard Connectors Part Context

This component is part of the broader TE Connectivity AMP Connectors portfolio, specifically within the standard card edge connector subcategory. It complements other Sliver series products designed for high-density applications. The manufacturer provides ECAD models and datasheets to support design-in processes. It serves as a critical interconnect element in complex electronic assemblies.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult TE Connectivity directly for obsolescence notices or recommended alternatives if this specific 1432205-9 variant becomes unavailable.
