Edgeboard Connectors Overview

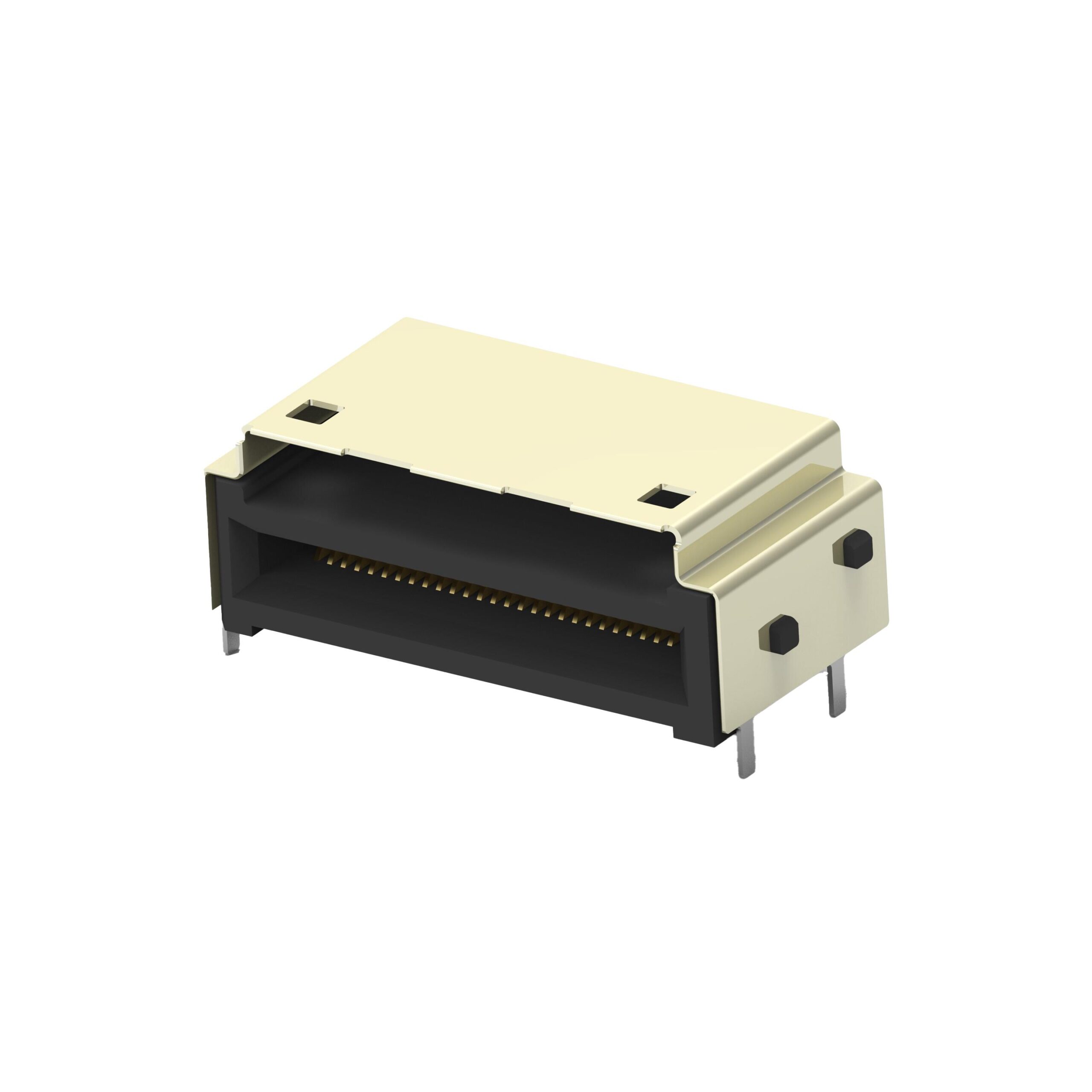

The TE Connectivity AMP Connectors part number 2332208-6 is a standard card edge connector receptacle assembly designed for right-angle mounting. It features 56 positions with a dual-edge contact configuration, suitable for high-density board-to-board interconnections. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. The connector body is black, constructed from durable insulating materials compliant with UL flammability standards. With a contact spacing of 0.024 inches (0.60mm), it supports precise alignment in compact electronic assemblies requiring robust mechanical stability and consistent electrical performance.

Edgeboard Connectors Feature Summary

• Right-angle receptacle design facilitates efficient PCB layout and space-saving installations.
• Dual-edge contact configuration ensures secure mating with card edge connectors.
• Gold-plated contacts provide enhanced conductivity and long-term reliability.

Edgeboard Connectors Applications

• Industrial control systems requiring dense I/O connections
• Telecommunications equipment backplanes
• Computing hardware motherboards and expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific revision level and packaging type (tube or tray) against the latest manufacturer datasheet before ordering. Confirm that the receiving card edge connector matches the 0.60mm pitch and dual-edge specification. Ensure storage conditions prevent contamination of the gold contacts prior to assembly.

Edgeboard Connectors Selection Notes

Select this component when right-angle mounting is required for 56-position dual-edge interfaces. Compare against single-edge variants if only one side of the card is active. Consider thermal management requirements as gold plating thickness impacts solderability and wear resistance during repeated mating cycles.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors standard card edge series, widely used in modular electronic systems. It complements other 0.60mm pitch connectors in the portfolio, offering a standardized solution for high-pin-count applications where vertical clearance is limited but horizontal density is critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 56-position count, 0.60mm pitch, right-angle orientation, and dual-edge contact style. Verify housing material compatibility and UL rating equivalence. Cross-reference with TE's own updated part numbers to ensure availability, as older revisions may be discontinued.
