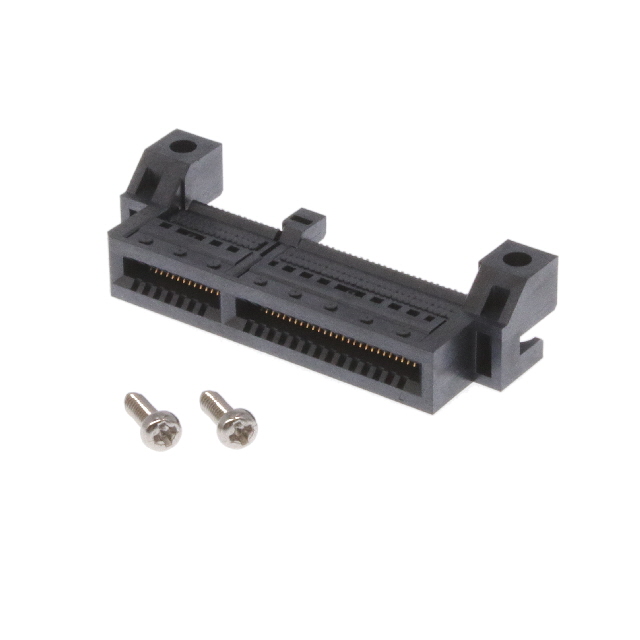

2340326-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FMALE 84POS 0.024. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2340326-1
- Description：CONN EDGE DUAL FMALE 84POS 0.024
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：84
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.024" (0.60mm)
- Read Out：Dual
- Features：-
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：Straddle Mount Opening, Unthreaded, 0.094" (2.40mm)
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 2340326-1
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2340326-1 is a dual-edge card edge connector assembly designed for straddle mount PCB orientation. It features 84 positions with gold-plated contacts and a 0.60mm (0.024 inch) pitch. The component is black in color and rated for a current of 1.1A. It is compatible with Gen-Z and OCP NIC 3.0 standards, serving as a mid-board copper receptacle.
Edgeboard Connectors Feature Summary
- Dual-row configuration for high-density interconnect applications
- Straddle mount design ensuring secure PCB alignment
- Gold contact plating for reliable signal transmission
Edgeboard Connectors Applications
- Gen-Z memory interface systems
- OCP NIC 3.0 server architectures
- Mid-board copper receptacle connections
Edgeboard Connectors Procurement Notes
Verify the specific datasheet version and agency approval documents prior to procurement. Confirm that the straddle mount orientation matches the target PCB layout requirements. Ensure compatibility with Gen-Z or OCP NIC 3.0 specifications if applicable to the system design. Check for any recent product change notices affecting this component.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge card edge connector with 84 positions is required for straddle mount applications. The 0.60mm pitch and 1.1A rating define its electrical and spatial constraints. Consider compatibility with Gen-Z and OCP NIC 3.0 standards during the selection process to ensure system interoperability.
Edgeboard Connectors Part Context
This component belongs to the standard card edge connector family from TE Connectivity AMP Connectors. It serves as a mid-board copper receptacle, facilitating connections within complex electronic assemblies. The part is distinct from single-edge or through-hole connectors due to its specific dual-edge geometry and mounting style.
Edgeboard Connectors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical ratings before considering alternative components from other manufacturers.
