2360558-1

Edgeboard Connectors Overview

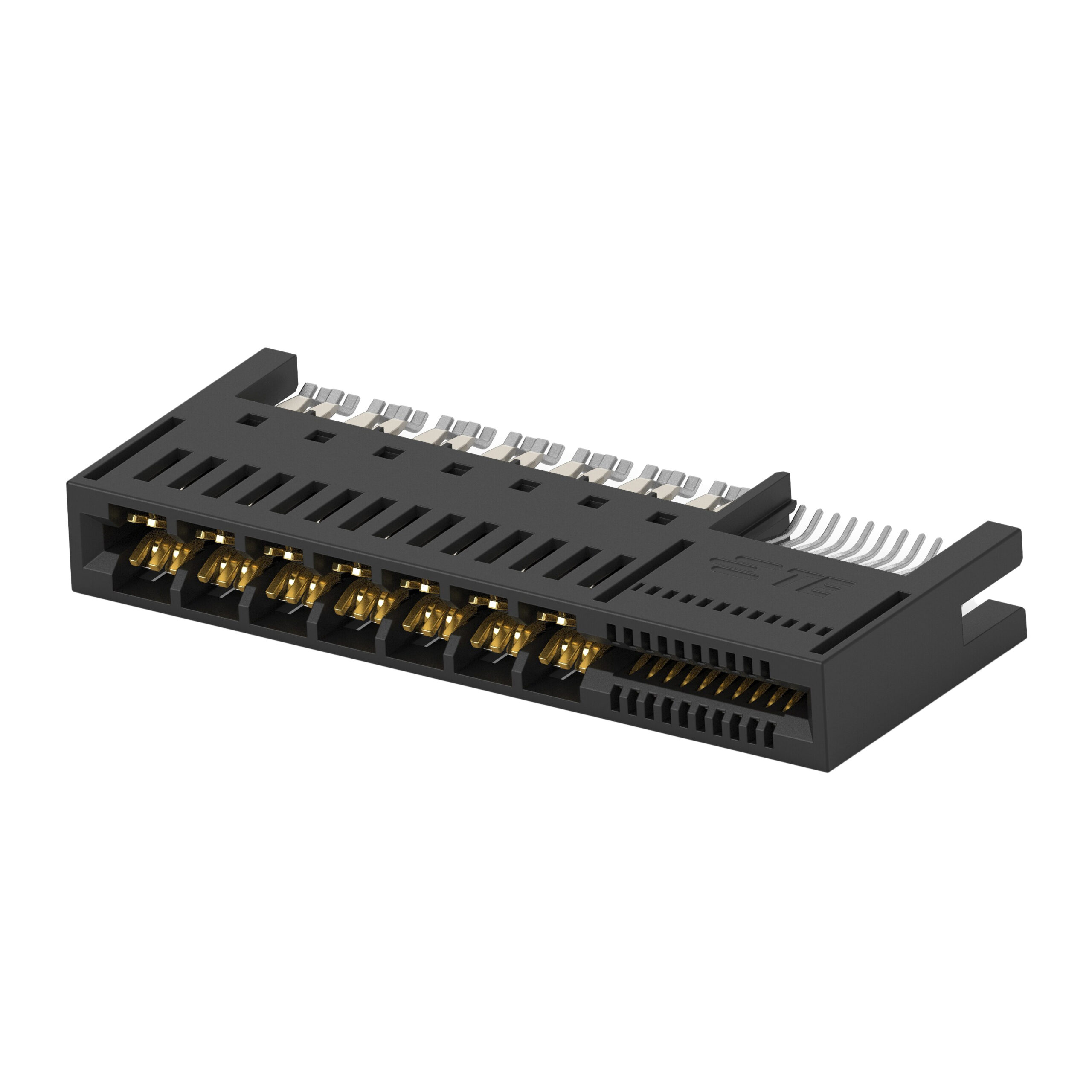

The TE Connectivity AMP Connectors part number 2360558-1 is a Card Edge connector designed for dual edge female mounting. It features a total of 34 positions, configured as 20 signal and 14 power contacts. The connector utilizes a straddle mount solder termination method suitable for printed circuit board integration. Key dimensional specifications include a signal pitch of 1.27mm and a power pitch of 5.08mm. The housing material is black, providing visual contrast and standard insulation properties for electronic assembly applications requiring reliable electrical interconnection.

Edgeboard Connectors Feature Summary

• Dual edge receptacle design accommodating both signal and power lines simultaneously
• Straddle mount configuration ensures secure mechanical attachment to the substrate
• Mixed pitch architecture supports distinct spacing requirements for signal and power traces

Edgeboard Connectors Applications

• Electronic module interconnection systems
• Industrial control board assemblies
• Telecommunications hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific pin count configuration and pitch dimensions against your PCB layout requirements before ordering. Confirm that the straddle mount style aligns with your manufacturing capabilities and board thickness specifications. Ensure compatibility with existing mating connectors in your system design to prevent interface failures during assembly or operation.

Edgeboard Connectors Selection Notes

Choose this component when a combined signal and power solution is required on a single card edge interface. The mixed pitch design allows for optimized trace routing without compromising connection density. Consider the mechanical stability provided by the straddle mount for applications subject to vibration or physical stress during deployment.

Edgeboard Connectors Part Context

This component belongs to the broader category of card edge connectors manufactured by TE Connectivity AMP Connectors. These devices are essential for creating removable connections between circuit boards and backplanes or chassis. The specific model addresses needs for high-density interconnects where space efficiency and robust electrical performance are critical priorities.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference options through official manufacturer channels if direct replacement is necessary due to supply constraints.
