2425-601-X5W0-103ZLF

Overview

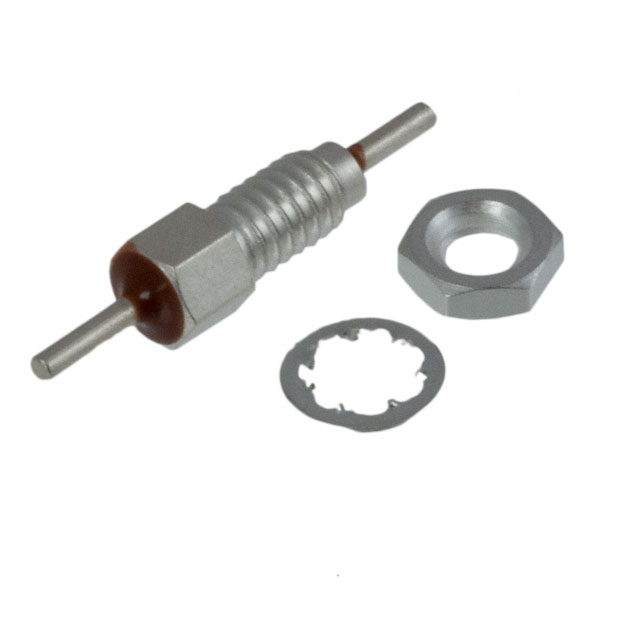

The 2425-601-X5W0-103ZLF is a feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 10000 pF with a voltage rating of 100V and a current handling capacity of 20 A. The component utilizes an axial bushing package configuration. It is designed for electromagnetic interference filtering applications within electronic circuits.

Feature Summary

• Provides high-current bypass capability through a robust axial bushing design
• Delivers effective electromagnetic interference suppression via feedthrough architecture
• Supports reliable operation in demanding electrical environments

Applications

• Power supply input filtering
• Electronic equipment chassis grounding
• Signal line noise reduction

Procurement Notes

Verify the complete part number including suffixes to ensure correct RoHS compliance and packaging specifications. Confirm lead times as manufacturing schedules may vary. Ensure compatibility with mounting hardware requirements for the axial bushing style before procurement.

Selection Notes

Select this component when high capacitance values are required for low-frequency noise attenuation. The 20 A current rating suits power distribution lines. Verify that the axial bushing form factor fits the available panel or chassis space constraints.

Part Context

This component belongs to the Tusonix feedthrough capacitor family. These components are engineered for EMI/RFI suppression in sensitive electronic systems. The axial bushing style allows for direct panel mounting, providing a low-inductance path to ground for high-frequency noise currents.

Replacement Considerations

Check for equivalent capacitance and voltage ratings in other manufacturers' axial bushing feedthrough capacitors. Ensure physical dimensions match existing mounting holes. Verify current handling capabilities meet or exceed the original 20 A requirement.
