2450-001-X5U0-102PLF

Overview

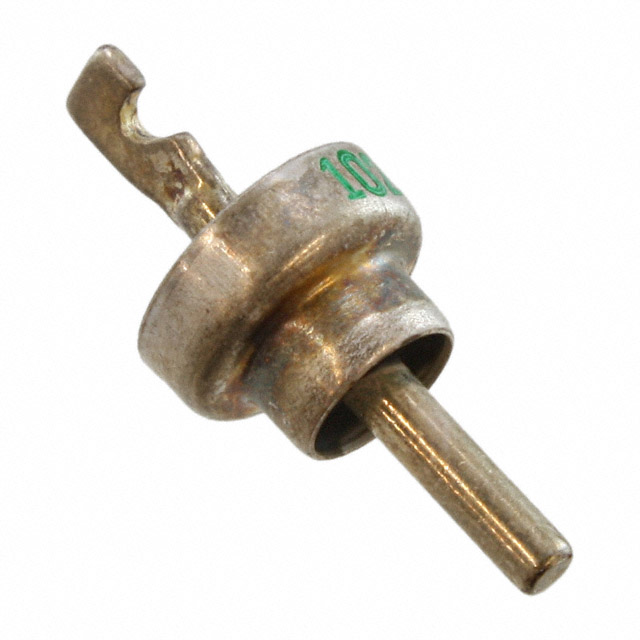

The 2450-001-X5U0-102PLF is a feed-through capacitor manufactured by Tusonix, a subsidiary of CTS. It features a capacitance of 1000 pF and a voltage rating of 500 V. The component utilizes X5U dielectric material and offers a tolerance of 20%. Designed for axial mounting with discoidal geometry, it supports up to 20 A current. The operating temperature range extends from -55°C to +85°C. Packaging is provided in bulk quantities.

Feature Summary

• Provides electromagnetic interference suppression through feed-through architecture
• Supports high current handling capabilities for power line applications
• Utilizes X5U ceramic dielectric for stable performance across specified temperatures

Applications

• Electromagnetic interference filtering in electronic circuits
• Power supply input stages requiring high current capacity
• Signal integrity protection in sensitive equipment

Procurement Notes

Verify the specific suffix requirements for lead configuration and termination style before ordering. Confirm that the axial discoidal form factor aligns with the target PCB layout or chassis mounting constraints. Ensure the 500 V rating and 20 A current capacity meet the system's electrical demands. Check for RoHS compliance status if environmental regulations apply to the final assembly. Validate supplier authenticity to guarantee component traceability.

Selection Notes

Select this component when a feed-through topology is required for superior high-frequency noise attenuation compared to standard capacitors. The 1000 pF value suits applications needing moderate capacitance with low impedance at higher frequencies. Consider the physical dimensions and axial lead spacing during mechanical design. Evaluate the thermal environment to ensure operation within the -55°C to +85°C range. Compare against other series in the 2450 family for alternative voltage or capacitance options.

Part Context

This part belongs to the 2450 series of EMI feedthrough filters produced by Tusonix. These components are designed to suppress radio frequency interference on power and signal lines. The series typically includes various capacitance values and voltage ratings to accommodate different circuit requirements. Tusonix specializes in high-reliability passive components for industrial and aerospace markets.

Replacement Considerations

Direct substitutes may include other 2450 series variants with matching capacitance and voltage ratings. Verify dimensional compatibility for axial leads and discoidal body size. Ensure equivalent current handling and temperature specifications. Cross-reference with similar feed-through capacitors from other manufacturers if availability is an issue.
