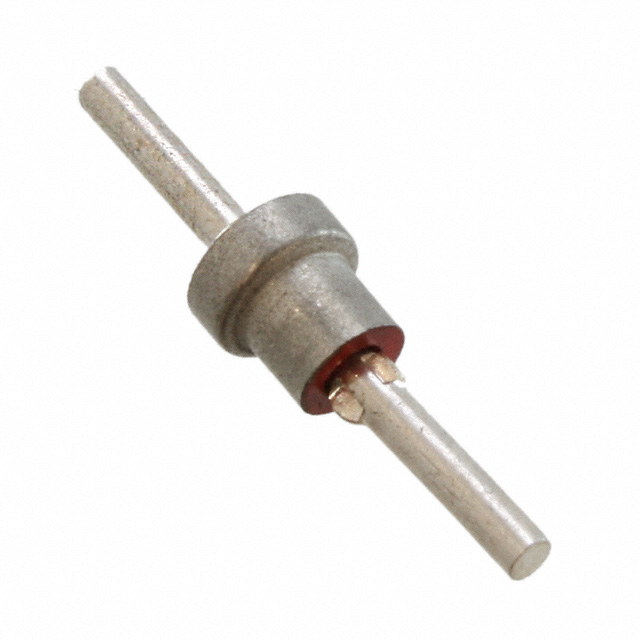

2461-001-X7V0-102PLF

$5.06

Description：CAP FEEDTHRU 1000PF 100V AXIAL
Series：2461
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:046d38166890 Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 1000PF 100V AXIAL
Series：2461
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：100V
Current：20 A
Operating Temperature：-55°C ~ 125°C
Mounting Type：Chassis Mount
Package / Case：Axial, Shoulder
Size / Dimension：0.165" Dia x 0.165" L (4.19mm x 4.19mm)
Capacitance：1000 pF
Tolerance：0%, +100%
DC Resistance (DCR) (Max)：-
Insertion Loss：-
Temperature Coefficient：X7V
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

2461-001-X7V0-102PLF

Overview

The 2461-001-X7V0-102PLF is an axial feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. This component features a capacitance value of 1000 pF with a tolerance range of 0% to +100%. It is rated for a maximum voltage of 100 V and supports a continuous current of 20 A. The device utilizes X7V dielectric material and operates within a temperature range of -55°C to +125°C.

Feature Summary

Axial leaded feedthrough capacitor design for direct wire mounting
X7V dielectric construction for stable performance across wide temperature ranges
High current handling capability suitable for power line filtering applications

Applications

Electromagnetic interference (EMI) suppression in electronic circuits
Power supply input and output filtering
Signal line noise reduction in sensitive instrumentation

Procurement Notes

Verify the specific manufacturer designation, as sources list both 'Tusonix' and 'CTS Electronic Components'. Confirm RoHS compliance status, as documentation indicates varying compliance levels. Ensure the axial package style matches the intended PCB or chassis mounting requirements before finalizing procurement orders.

Selection Notes

Select this component when high current capacity and compact axial form factor are required for EMI filtering. The X7V temperature coefficient ensures reliability in environments fluctuating between -55°C and +125°C. Consider the 1000 pF capacitance value for high-frequency noise attenuation while maintaining low impedance paths for common-mode signals.

Part Context

This part belongs to the 2461 series of feedthrough capacitors from Tusonix/CTS. These components are designed for through-hole mounting on wires or cables rather than standard PCB pads. The series offers various capacitance and voltage ratings to suit different filtering needs in industrial and commercial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility based on capacitance, voltage rating, current handling, and physical dimensions if sourcing alternatives.
