2499-003-X5S0-152MLF

Overview

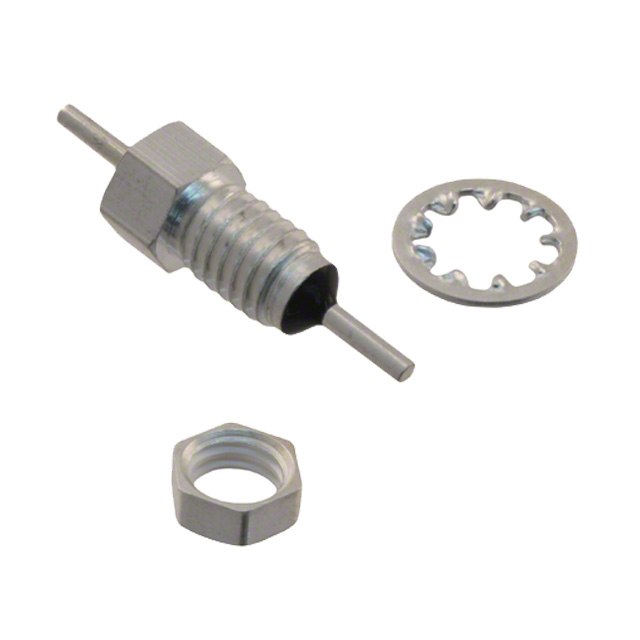

The 2499-003-X5S0-152MLF is an EMI feedthrough filter capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. This component features a capacitance of 1500 pF with a voltage rating of 500 VDC and a current rating of 20 A. It utilizes an axial bushing package design suitable for panel mounting applications.

Feature Summary

• Provides effective electromagnetic interference suppression through feedthrough capacitor technology
• Features a robust axial bushing package designed for secure panel mounting installations

Applications

• Electronic equipment requiring EMI/RFI filtering
• Power supply input stages
• Signal line protection in sensitive circuits

Procurement Notes

Verify the complete part number including suffixes to ensure correct voltage and capacitance ratings. Confirm package type and terminal configuration match the intended mechanical assembly requirements before ordering.

Selection Notes

Select this component when high-voltage isolation and significant current handling are required alongside noise suppression. The axial bushing form factor is ideal for chassis-mounted filtering solutions where space constraints favor vertical installation.

Part Context

This part belongs to the Tusonix family of EMI feedthrough filters, which are specialized capacitors designed to attenuate high-frequency noise on power and signal lines while maintaining electrical isolation between circuit sections.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify that any replacement matches the original capacitance, voltage rating, current capacity, and physical dimensions to ensure proper fit and function.
