Product Detailed Parameters
- Description：CAP FEEDTHRU 100PF 250V AXIAL
- Series：2499
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：250V
- Current：20 A
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Bushing
- Size / Dimension：0.250" Dia x 0.468" L (6.35mm x 11.89mm)
- Capacitance：100 pF
- Tolerance：±20%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：-
- Temperature Coefficient：X7R
- Ratings：-
- Height (Max)：-
- Thread Size：12月28日
Download product information
Overview

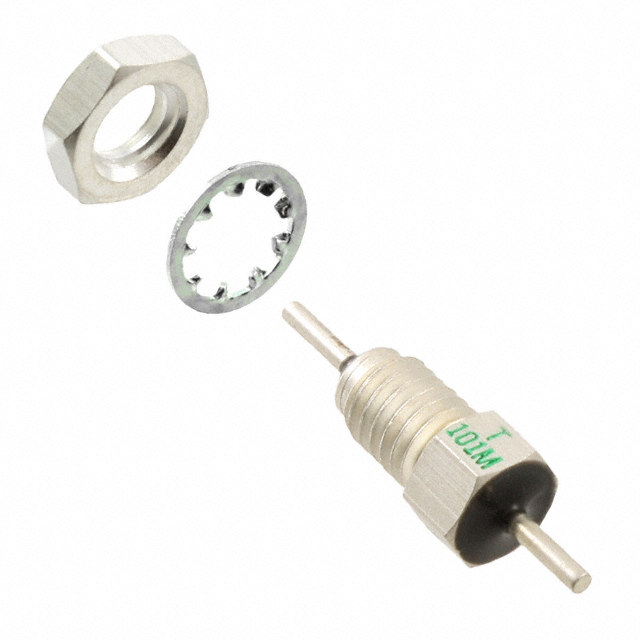

The 2499-003-X7R0-101MLF is a feed-through capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It belongs to the 2499 series and features a capacitance of 100 pF with a tolerance of ±20%. The component has a rated voltage of 250 V and a current rating of 20 A. It utilizes X7R dielectric material, providing stable performance across its operating temperature range.
Feature Summary
- Provides effective electromagnetic interference (EMI) filtering through feed-through architecture
- Utilizes X7R dielectric for consistent capacitance stability under varying conditions
- Supports high current handling capabilities suitable for power line applications
Applications
- Electromagnetic interference suppression in electronic circuits
- Power line filtering for signal integrity maintenance
- High-frequency noise reduction in sensitive equipment
Procurement Notes
Verify the manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components, against official documentation. Confirm the specific part number 2499-003-X7R0-101MLF matches the required 100 pF capacitance and 250 V rating. Ensure compliance with RoHS standards if applicable to your project requirements before finalizing procurement.
Selection Notes
Select this component when EMI filtering is required on lines carrying up to 20 A. The 100 pF value targets high-frequency noise attenuation. Verify that the 250 V rating meets the system's voltage requirements. Consider the physical dimensions and mounting style if space constraints exist within the design layout.
Part Context
This component is part of the 2499 series of feed-through capacitors from Tusonix/CTS. These components are designed for surface mount or panel mount applications where compact size and high performance are necessary. The series offers various capacitance values to suit different filtering needs while maintaining robust electrical characteristics.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Consult manufacturer catalogs for cross-references based on identical electrical specifications and mechanical footprint requirements.
