2N7002AKS-QX

$0.25

Description：MOS DISCRETES
Series：-
Mfr：Nexperia USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:05a974915984 Category: Single FETs, MOSFETs Brand: Nexperia USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOS DISCRETES
Series：-
Mfr：Nexperia USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：-
Technology：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Drive Voltage (Max Rds On, Min Rds On)：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：-
Input Capacitance (Ciss) (Max) @ Vds：-
FET Feature：-
Power Dissipation (Max)：-
Operating Temperature：-
Grade：-
Qualification：-
Mounting Type：-
Supplier Device Package：-
Package / Case：-

Download product information

2N7002AKS-QX

Overview

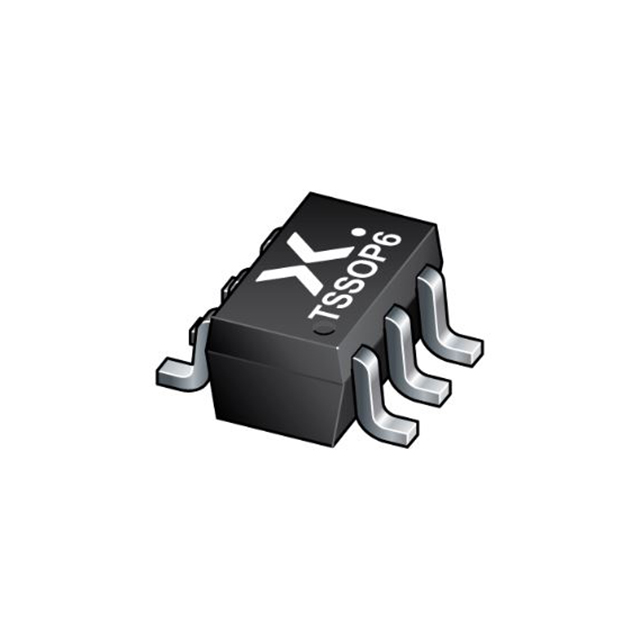

The Nexperia 2N7002AKS-Q is a dual N-channel enhancement mode Field-Effect Transistor utilizing Trench MOSFET technology. It is housed in a compact SOT363 (SC-88) surface-mount package with six leads. The device supports a drain-source voltage of 60 V and provides a continuous drain current of 220 mA at 25 °C. It features an extended junction temperature range up to 175 °C and includes integrated electrostatic discharge protection. The component is qualified under the AEC-Q101 standard for automotive reliability.

Feature Summary

Logic-level compatible operation
Extended temperature range up to 175 °C
Trench MOSFET technology
AEC-Q101 qualified

Applications

Relay driver
High-speed line driver
Low-side load switch
Switching circuits

Procurement Notes

Verify that the ordering suffix matches the specific package variant required, as Nexperia utilizes distinct suffixes for different reel or tape configurations. Confirm the presence of the AEC-Q101 qualification mark on documentation if automotive compliance is mandatory. Ensure the design accounts for the thermal resistance characteristics specified for the SOT363 footprint during high-duty cycle operations.

Selection Notes

Select this component when a dual N-channel configuration is required within a minimal board area constraint. The logic-level compatibility simplifies drive circuitry requirements for low-voltage microcontrollers. The extended 175 °C junction temperature rating makes it suitable for environments where standard commercial grade components may exceed their thermal limits.

Part Context

This part belongs to the 2N7002 family of dual N-channel MOSFETs manufactured by Nexperia. While sharing the core transistor architecture with single-channel variants like the 2N7002, this specific model integrates two independent channels into a single SOT363 package. This integration reduces component count and PCB space compared to using discrete single-channel devices.
