Product Detailed Parameters
- Description：N-CHANNEL MOSFET,SOT-323S
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：230mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：2.5Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id：2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs：0.9 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：15 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：290mW (Tj)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：SOT-323S
- Package / Case：SC-70, SOT-323
Download product information
Overview

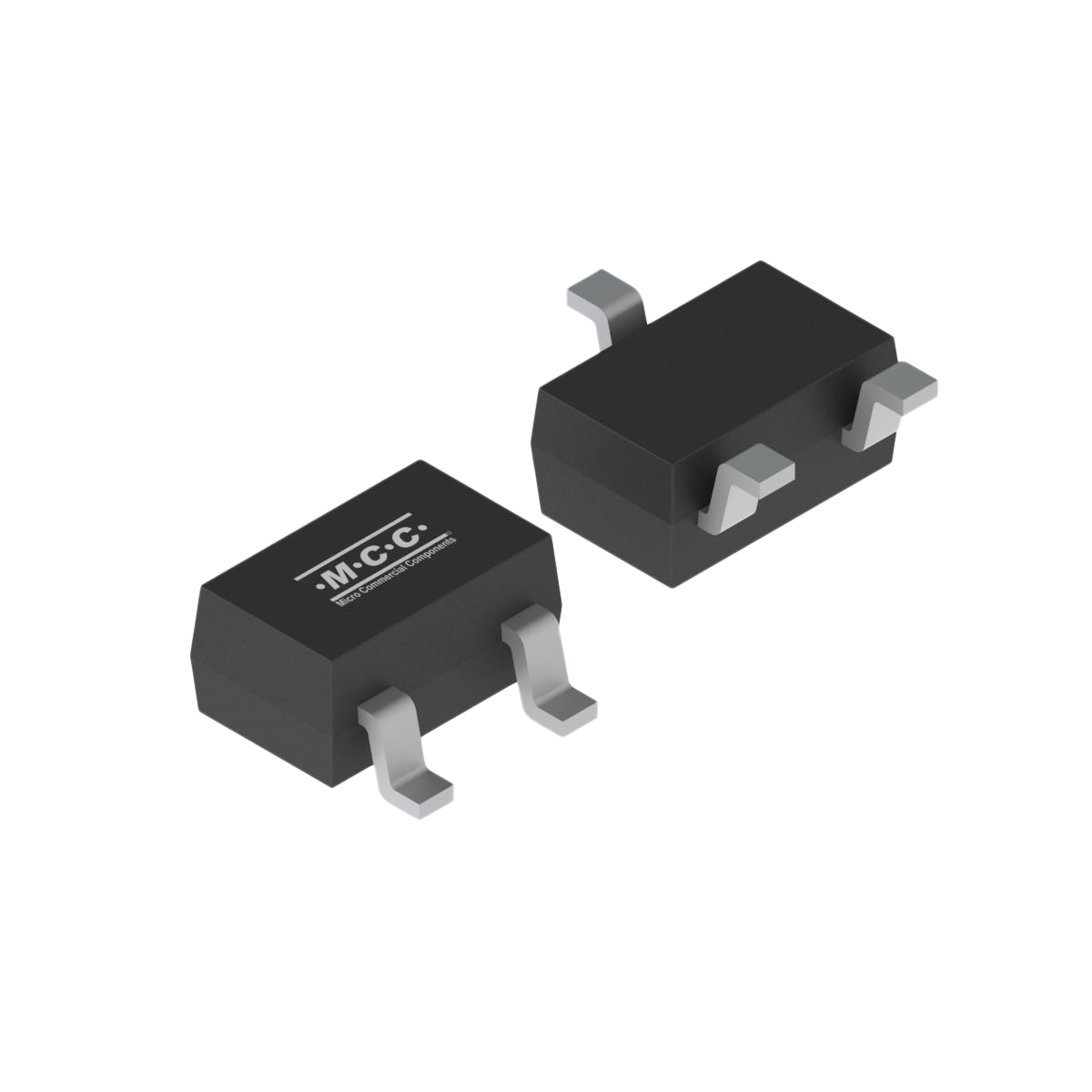

The 2N7002KWS-TP is an N-channel MOSFET manufactured by Micro Commercial Components (MCC). It is housed in a SOT-323S surface-mount package. The component is classified as a single-channel transistor within the Transistors sub-category. Official documentation confirms its availability in Reel and Cut Tape packaging formats, with a standard factory pack quantity of 3000 units.
Feature Summary
- Single-channel N-channel enhancement mode configuration
- Designed for surface-mount technology (SMD/SMT) applications
- Manufactured using Silicon (Si) semiconductor technology
Applications
- General-purpose switching circuits
- Low-power signal processing
- Battery protection modules
Procurement Notes
Verify the specific suffix KWS against the official MCC datasheet to confirm the exact pinout and mechanical dimensions associated with the SOT-323S package variant. Ensure that the ordering quantity aligns with the manufacturer's standard reel size of 3000 units if bulk procurement is required. Confirm RoHS compliance status through the latest product specification document before integration into final assemblies.
Selection Notes
Select this component when a compact SOT-323S footprint is required for space-constrained designs. Verify that the electrical requirements for drain-source voltage and continuous current are met by comparing them against the official datasheet parameters. Ensure compatibility with the intended PCB assembly process for the specified surface-mount package type.
Part Context
This part belongs to the broader 2N7002 family of N-channel MOSFETs produced by Micro Commercial Components. While other variants such as the 2N7002KWA-TP utilize the SOT-323-3 package, the KWS-TP specifically denotes the SOT-323S form factor. This distinction is critical for PCB layout and mechanical fitment compared to other members of the series.
Replacement Considerations
Cross-reference with other MCC parts like the 2N7002KWA-TP only if the package difference between SOT-323S and SOT-323-3 is acceptable for the design.
