2SA2088U3HZGT106Q

Single Bipolar Transistors Overview

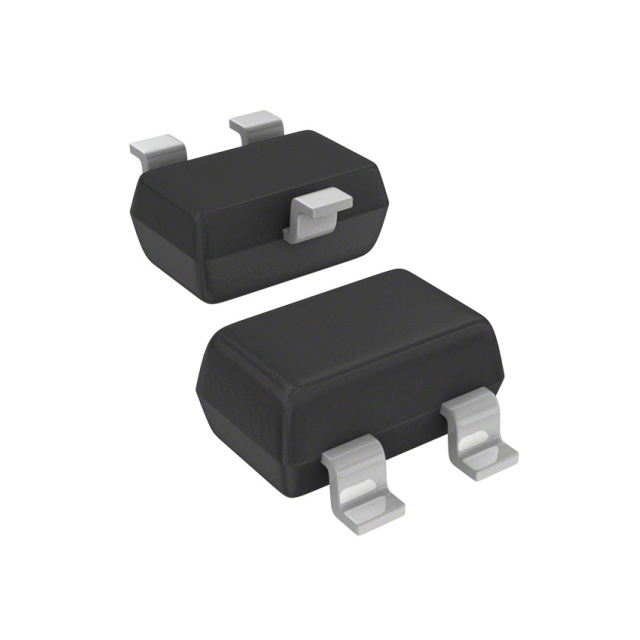

The 2SA2088U3HZGT106Q is an AEC-Q101 qualified PNP bipolar junction transistor manufactured by ROHM Semiconductor. It features a -60V collector-emitter voltage and a -500mA continuous collector current, housed in a SOT-323 (UMT3M) surface-mount package. The device provides a power dissipation of 200mW and operates within a junction temperature range up to 150°C. Key electrical characteristics include a DC current gain (hFE) ranging from 120 to 270 at -50mA, a transition frequency of 400MHz, and a typical saturation voltage of -150mV.

Single Bipolar Transistors Feature Summary

• High-speed switching capability with a typical fall time of 60ns.
• Low saturation voltage for efficient power handling.
• Strong discharge power suitable for inductive and capacitive loads.
• Complements the 2SC5876U3 HZG NPN transistor.

Single Bipolar Transistors Applications

• Small signal low frequency amplifier
• High speed switching

Single Bipolar Transistors Procurement Notes

Verify the specific ordering suffix T106 against official documentation to confirm packaging details such as reel size and tape width. Ensure that the component meets the required automotive grade standards if intended for vehicle applications. Cross-reference the absolute maximum ratings with your system's operational limits to prevent exceeding the specified voltage or current thresholds during procurement validation.

Single Bipolar Transistors Selection Notes

Select this component when a high-speed PNP transistor with robust load handling is required. Its complementary nature to the 2SC5876U3 HZG makes it suitable for push-pull configurations. Consider its low saturation voltage for efficiency in low-voltage circuits. Verify that the SOT-323 package dimensions fit the available PCB space and that the thermal dissipation requirements are met under expected operating conditions.

Single Bipolar Transistors Part Context

This part belongs to ROHM's medium-power transistor series designed for general-purpose amplification and switching. It is specifically engineered to meet automotive reliability standards through AEC-Q101 qualification. The UMT3M package code indicates a compact form factor optimized for surface-mount technology, allowing for dense circuit board layouts while maintaining performance in small-signal applications.

Single Bipolar Transistors Replacement Considerations

The datasheet explicitly states that the 2SA2088U3HZG complements the 2SC5876U3 HZG. No other direct substitute part numbers are listed in the provided documentation.

Single Bipolar Transistors FAQ

What is the typical fall time for this transistor?

The typical fall time is 60ns when measured at a collector current of -500mA.

Is this component qualified for automotive use?

Yes, the 2SA2088U3HZG is AEC-Q101 qualified, making it suitable for automotive applications.

What is the complementary NPN transistor for this model?

The 2SC5876U3 HZG is the complementary NPN transistor for the 2SA2088U3HZG.
