2SB1236ATV2P

Single Bipolar Transistors Overview

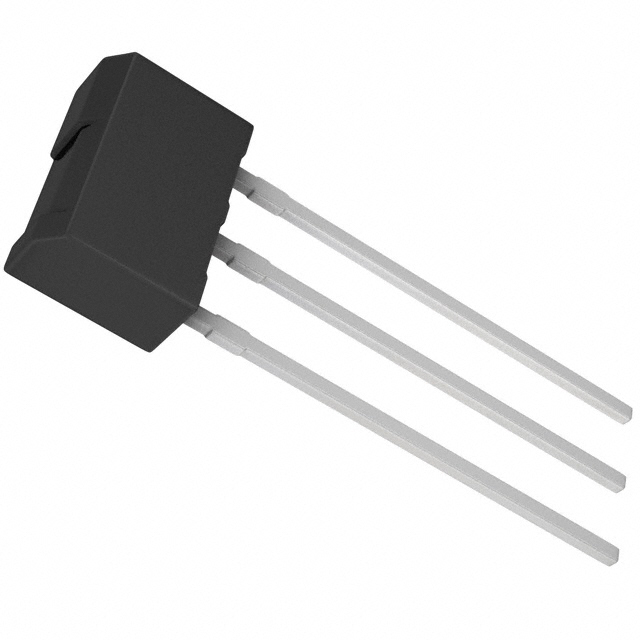

The 2SB1236ATV2P is a PNP silicon power transistor manufactured by ROHM Semiconductor. It features a collector-emitter breakdown voltage of -160V and a maximum DC collector current of -1.5A. The device operates with a transition frequency of 50MHz and exhibits low collector output capacitance, typically 30pF at VCB = 10V. It utilizes the ATV package (ROHM designation) and is supplied in taping configurations with a basic ordering unit of 2500 pieces.

Single Bipolar Transistors Feature Summary

• High breakdown voltage capability up to -160V for robust operation
• Low collector output capacitance to support high-speed switching applications
• High transition frequency of 50MHz for efficient signal processing
• Complementary design pairing with NPN transistors such as the 2SD1918

Single Bipolar Transistors Applications

• General-purpose audio visual equipment
• Office automation devices
• Communication devices
• Electronic appliances
• Amusement devices

Single Bipolar Transistors Procurement Notes

Verify the specific suffix ATV2P against official ROHM documentation to confirm packaging details and availability status. Ensure that the procurement channel provides genuine components from authorized sources. Confirm RoHS compliance and environmental certifications prior to finalizing orders. Check for any recent product lifecycle notices regarding discontinuation or last-time buy recommendations.

Single Bipolar Transistors Selection Notes

Select this component for circuits requiring a PNP transistor with a -160V rating and -1.5A current handling capacity. Consider its complementary relationship with the 2SD1918 when designing push-pull stages. Evaluate the thermal dissipation requirements based on the 1W power rating at 25°C case temperature. Ensure the operating junction temperature remains within the specified -55°C to +150°C range.

Single Bipolar Transistors Part Context

This part belongs to the 2SB1236A series of power bipolar transistors produced by ROHM. It shares electrical characteristics with the 2SB1275 but differs in packaging and supply configuration. The ATV package denotes a specific surface-mount form factor designed for automated assembly processes in consumer electronics manufacturing lines.

Single Bipolar Transistors Replacement Considerations

The 2SB1275 serves as a functional equivalent with identical electrical specifications. Verify pinout compatibility and physical dimensions before substitution. Other complementary pairs may require circuit adjustments due to differing hFE ranges or saturation voltages.
