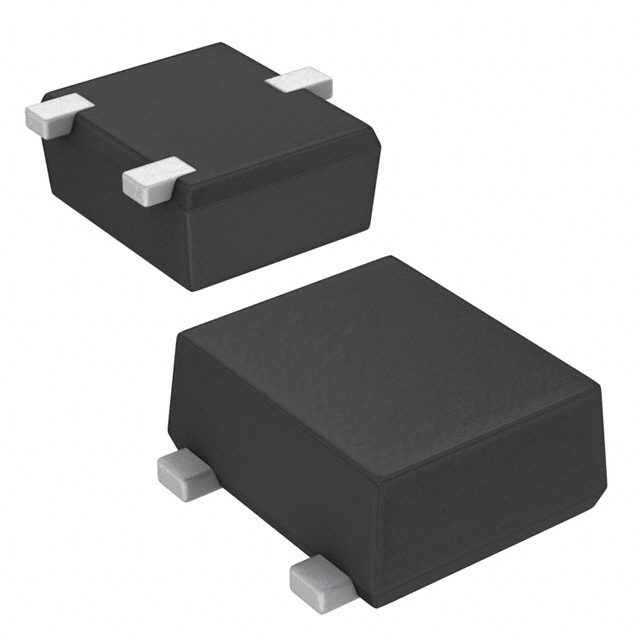

2SC4082T106P

$0.42

Description：RF TRANS NPN 20V 1.5GHZ UMT3
Series：-

SKU:fad71997f787 Category: Bipolar RF Transistors Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF TRANS NPN 20V 1.5GHZ UMT3
Series：-
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Transistor Type：NPN
Voltage - Collector Emitter Breakdown (Max)：20V
Frequency - Transition：1.5GHz
Noise Figure (dB Typ @ f)：4.5dB @ 200MHz
Gain：-
Power - Max：200mW
DC Current Gain (hFE) (Min) @ Ic, Vce：82 @ 10mA, 10V
Current - Collector (Ic) (Max)：50mA
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：SC-70, SOT-323
Supplier Device Package：UMT3
Grade：-
Qualification：-

Download product information

2SC4082T106P

Overview

The 2SC4082T106P is an NPN high-frequency amplifier transistor manufactured by Rohm Semiconductor. It operates with a maximum collector-emitter voltage of 20V and a continuous collector current of 50mA, dissipating up to 200mW of power. The device features a transition frequency (fT) of 1.5GHz and a minimum DC current gain (hFE) of 82 at 10mA and 10V. Key electrical characteristics include a noise figure of 4.5dB at 200MHz and a collector-base time constant of 6ps. It is housed in the UMT3 surface-mount package.

Feature Summary

High transition frequency for ultra-high frequency band applications
Small collector-base time constant combined with high gain
Low noise figure suitable for sensitive signal amplification

Applications

High-frequency amplifier circuits
General-use communication devices
Audio visual equipment signal processing

Procurement Notes

Verify the specific ordering suffix T106 against official Rohm documentation to confirm packaging details and hFE ranking codes. Ensure compatibility with UMT3 footprint requirements during component sourcing. Confirm RoHS compliance status through the manufacturer's latest datasheet revision before finalizing procurement orders.

Selection Notes

Select this component when designing circuits requiring a 20V breakdown voltage and 1.5GHz transition frequency. Verify that the 50mA collector current limit meets the load requirements. Consider the low noise figure specification if the application involves weak signal reception or amplification stages where signal integrity is critical.

Part Context

This part belongs to the 2SC4082 family, which includes variants like the 2SC5661 and 2SC4725. These transistors share similar high-frequency performance characteristics but differ in packaging types such as VMT3, EMT3, and SMT3. The T106 suffix specifically denotes the UMT3 package configuration used in this model.
