Product Detailed Parameters
- Description：RF TRANS NPN 50V 250MHZ SMINI3
- Series：-
- Mfr：Panasonic Electronic Components
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transistor Type：NPN
- Voltage - Collector Emitter Breakdown (Max)：50V
- Frequency - Transition：250MHz
- Noise Figure (dB Typ @ f)：-
- Gain：-
- Power - Max：150mW
- DC Current Gain (hFE) (Min) @ Ic, Vce：250 @ 2mA, 10V
- Current - Collector (Ic) (Max)：50mA
- Operating Temperature：150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：SC-85
- Supplier Device Package：SMini3-F2
- Grade：-
- Qualification：-
Download product information
Overview

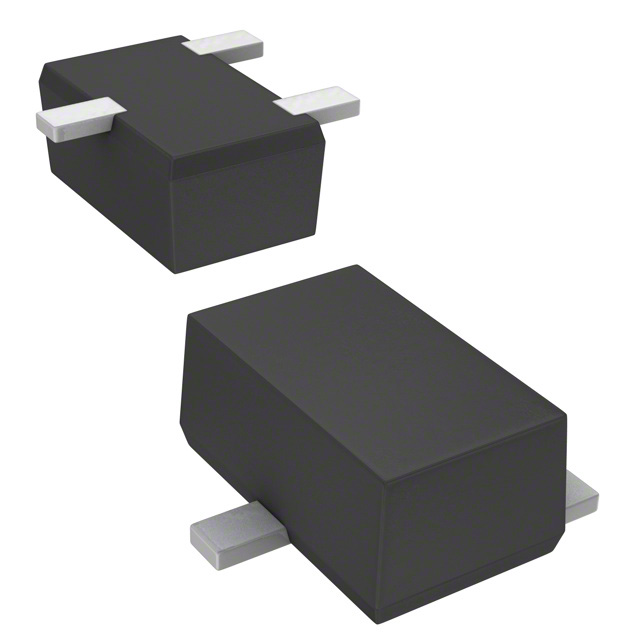

The Panasonic 2SC4562GRL is a silicon NPN epitaxial planar transistor designed for high-frequency amplification. It operates with a maximum collector-emitter voltage of 50 V and a collector current of 50 mA, dissipating up to 150 mW. The device features a minimum forward current transfer ratio (hFE) of 200 and a transition frequency (fT) of 250 MHz at 2 mA emitter current. Its collector output capacitance is 1.5 pF. Packaged in the SMini3-F2 surface-mount format, it serves as the complementary component to the 2SA1748G.
Feature Summary
- High transition frequency suitable for RF applications
- Small collector output capacitance for signal integrity
- S-Mini package enables equipment downsizing and automated tape insertion
Applications
- High-frequency amplification circuits
- General electronic equipment
- Communications equipment
- Measuring instruments
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm exact binning or packaging variations. Confirm RoHS compliance status and check the manufacturer's lifecycle page for maintenance or discontinuation notices before finalizing procurement plans.
Selection Notes
Select this component when a low-voltage NPN transistor with high-speed switching characteristics is required. Ensure the design accommodates the 50 V breakdown limit and verify that the SMini3-F2 footprint aligns with the target PCB layout constraints.
Part Context
This part belongs to the Panasonic 2SC series of small-signal bipolar transistors. It is specifically engineered as the NPN counterpart to the 2SA1748G PNP transistor, allowing for matched complementary pairs in amplifier designs requiring high-frequency performance.
Replacement Considerations
Consult official cross-reference lists for verified substitutes. Generic replacements must match the 50 V rating, 50 mA current capacity, and SMini3-F2 package dimensions to ensure mechanical and electrical compatibility.
FAQ
What is the transition frequency of the 2SC4562G?
The transition frequency (fT) is 250 MHz when measured at a collector-base voltage of 10 V and an emitter current of -2 mA.
Is the 2SC4562G compliant with environmental directives?
Yes, the product complies with the RoHS Directive (EU 2002/95/EC).
What is the maximum collector power dissipation?
The maximum collector power dissipation is 150 mW at an ambient temperature of 25°C.
