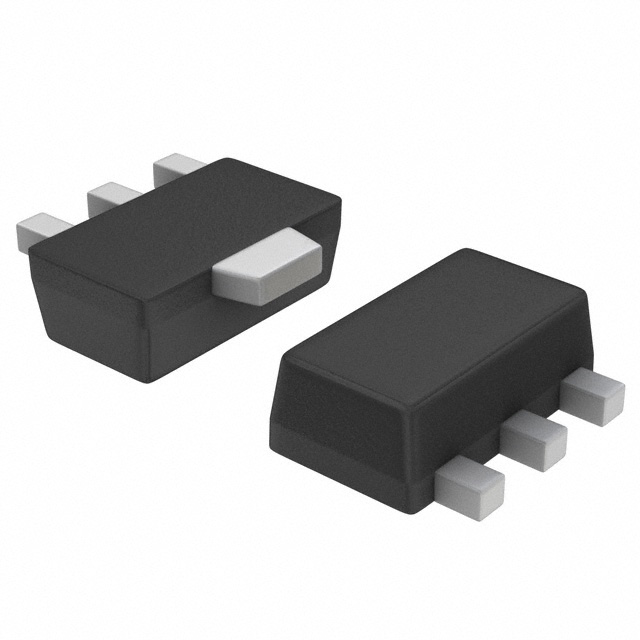

2SC5347AE-TD-E

$0.65

Description：RF TRANS NPN 12V 4.7GHZ PCP
Series：-

SKU:70996021afe1 Category: Bipolar RF Transistors Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF TRANS NPN 12V 4.7GHZ PCP
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
Transistor Type：NPN
Voltage - Collector Emitter Breakdown (Max)：12V
Frequency - Transition：4.7GHz
Noise Figure (dB Typ @ f)：1.8dB @ 1GHz
Gain：8dB
Power - Max：1.3W
DC Current Gain (hFE) (Min) @ Ic, Vce：90 @ 50mA, 5V
Current - Collector (Ic) (Max)：150mA
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-243AA
Supplier Device Package：PCP
Grade：-
Qualification：-

Download product information

2SC5347AE-TD-E

Overview

The 2SC5347AE-TD-E is a high-frequency NPN bipolar junction transistor manufactured by onsemi. Designed specifically for RF amplifier applications, this silicon device operates within the radio frequency spectrum. It utilizes a surface-mount CP package configuration suitable for automated assembly processes. The component is characterized as a specialized active element for signal amplification in electronic circuits requiring high-frequency performance capabilities.

Feature Summary

Engineered for high-frequency radio frequency (RF) amplifier operations
Utilizes a compact surface-mount CP package for PCB integration
Constructed using silicon semiconductor technology

Applications

Radio frequency signal amplification stages
High-frequency electronic circuit design
RF communication system components

Procurement Notes

This component is officially classified as an End-of-Life product by the manufacturer. Distribution channels indicate restricted availability with limited stock status reported. Verification of current supply chain viability and alternative sourcing strategies is essential before procurement planning due to the discontinued production status.

Selection Notes

Designers should evaluate the discontinued status when selecting this part for new hardware development. Verify that existing inventory meets project longevity requirements. Consider functional equivalents from the same manufacturer family if long-term supply stability is a critical constraint for the application lifecycle.

Part Context

The 2SC5347AE-TD-E belongs to the 2SC5347 series of RF transistors produced by onsemi. This series focuses on high-frequency performance characteristics. The specific suffix indicates the tape-and-reel packaging format intended for surface-mount technology assembly lines.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the End-of-Life status, engineers must identify compatible alternatives through independent technical parameter matching rather than relying on official manufacturer substitution lists.
