2SD1835T-AA

Single Bipolar Transistors Overview

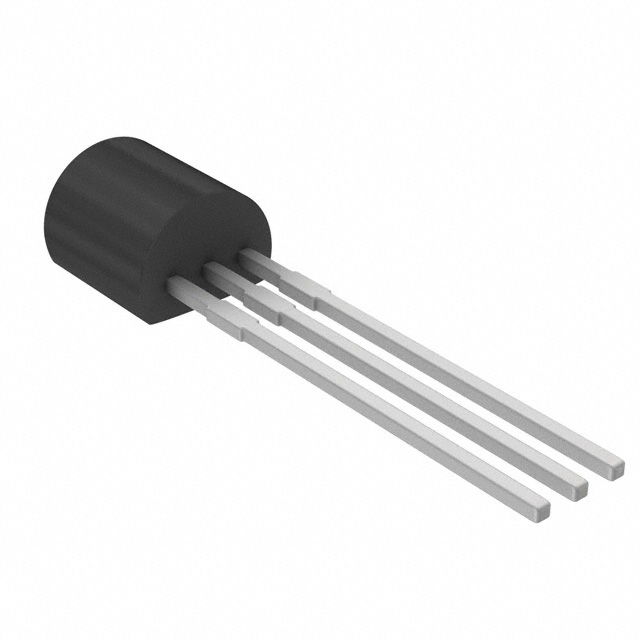

The 2SD1835T-AA is an NPN single transistor manufactured by onsemi, utilizing FBET and MBIT processes. It features a collector-to-emitter voltage of 50 V, a collector current of 2 A, and a collector dissipation of 0.75 W at 25°C. The device operates with a junction temperature up to 150 °C and includes a gain-bandwidth product of 150 MHz. It is housed in the NP package (SC-34A/TO-92/SOT-54) and ships in boxes of 1,500 pieces.

Single Bipolar Transistors Feature Summary

• Adopts FBET and MBIT processes for enhanced performance
• Provides large current capacity suitable for demanding applications
• Features low collector-to-emitter saturation voltage
• Delivers fast switching time capabilities

Single Bipolar Transistors Applications

• Voltage regulators
• Relay drivers
• Lamp drivers
• Electrical equipment

Single Bipolar Transistors Procurement Notes

Verify the specific ordering suffix AA against official documentation to confirm packaging details. Confirm that the NP package designation aligns with SC-34A or TO-92 physical dimensions. Ensure the minimum packing quantity matches the specified box configuration. Validate all electrical ratings against the absolute maximum limits provided in the datasheet before implementation.

Single Bipolar Transistors Selection Notes

Select this component when high current handling and rapid switching are required within a compact form factor. The low saturation voltage improves efficiency in power management circuits. Consider the thermal dissipation characteristics and operating temperature range for system integration. Verify compatibility with drive requirements based on the specified DC current gain ranges.

Single Bipolar Transistors Part Context

This part belongs to the 2SD1835 series of bipolar transistors produced by onsemi. The series encompasses variants such as 2SD1835S and 2SD1835T, differentiated primarily by packaging and shipping configurations. All variants share identical core electrical specifications and functional capabilities defined by the underlying semiconductor technology.

Single Bipolar Transistors Replacement Considerations

Cross-reference with other NPN transistors offering similar 50V and 2A ratings. Verify pinout compatibility and package dimensions for direct substitution. Evaluate thermal resistance and saturation voltage characteristics to ensure equivalent circuit performance.
