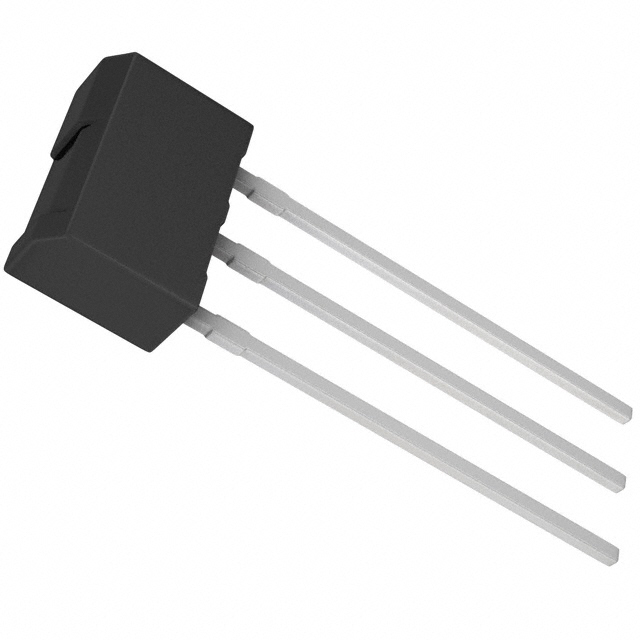

2SD2097TV2Q

Single Bipolar Transistors Overview

The ROHM 2SD2097TV2Q is an NPN silicon epitaxial planar transistor designed for strobe flash applications. It features a low collector-emitter saturation voltage of 0.25V typical at IC/IB = 4A/0.1A and excellent DC current gain characteristics. The device supports a maximum collector current of 5A (DC) and 10A (pulse), with a collector-emitter breakdown voltage of 20V. It operates within a junction temperature range up to 150°C and is available in the CPT3 package.

Single Bipolar Transistors Feature Summary

• Low VCE(sat) optimized for high-efficiency strobe flash driving
• High DC current transfer ratio ensuring stable amplification
• Epitaxial planar structure for robust performance

Single Bipolar Transistors Applications

• Strobe flash drivers
• High-speed switching circuits
• Power amplifier stages

Single Bipolar Transistors Procurement Notes

Verify the specific hFE binning code associated with the TV2 suffix against the official datasheet table, as this determines the exact DC current gain range. Confirm that the CPT3 package dimensions match the target PCB land pattern requirements before finalizing procurement orders.

Single Bipolar Transistors Selection Notes

Select this component when low saturation voltage is critical for minimizing power loss during high-current pulses. Ensure the base drive current capability meets the required IC/IB ratio to maintain the specified low VCE(sat). Verify thermal management strategies align with the specified power dissipation limits under actual mounting conditions.

Single Bipolar Transistors Part Context

This part belongs to a family of low VCE(sat) transistors including the 2SD2098 and 2SD2118. These devices are engineered to complement specific PNP counterparts such as the 2SB1386, 2SB1412, and 2SB1326, facilitating balanced push-pull or complementary circuit designs in consumer electronics and automotive lighting systems.

Single Bipolar Transistors Replacement Considerations

The 2SD2098 and 2SD2118 are electrically similar members of the same product family. Verify pinout compatibility and specific hFE binning requirements before substituting these parts in existing designs.
