Product Detailed Parameters
- Description：TRANS NPN 100V 3A TO-220F
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Transistor Type：NPN
- Current - Collector (Ic) (Max)：3:00 AM
- Voltage - Collector Emitter Breakdown (Max)：100 V
- Vce Saturation (Max) @ Ib, Ic：1.5V @ 1.5mA, 1.5A
- Current - Collector Cutoff (Max)：10µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce：2000 @ 2A, 2V
- Power - Max：2 W
- Frequency - Transition：-
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole

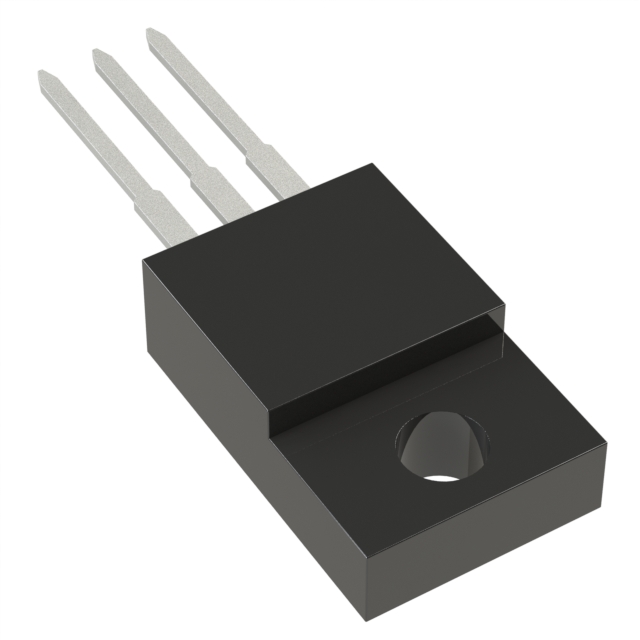

- Package / Case：TO-220-3 Full Pack
- Supplier Device Package：TO-220F
- Grade：-
- Qualification：-
Download product information
Overview
The 2SD2257-BP is an NPN silicon power transistor manufactured by Micro Commercial Components (MCC). It features a collector-emitter voltage of 100V and a continuous collector current rating of 3.0A. The device provides a DC current gain ranging from 200 to 1000 at specified test conditions. It operates with a maximum junction temperature of +150°C and is housed in a TO-220F package.
Feature Summary
- Epoxy encapsulation meets UL 94 V-0 flammability rating
- Low collector-emitter saturation voltage for efficient switching
- Lead-free finish compliant with RoHS standards
Applications
- General-purpose power amplification circuits
- Switching applications requiring high current handling
- Driver stages in electronic control systems
Procurement Notes
Verify the part number suffix matches the required compliance status, as the standard BP designation indicates bulk packaging. Confirm that the specific order includes the correct halogen-free designation if environmental regulations require it. Ensure procurement channels are authorized distributors to guarantee component authenticity and traceability.
Selection Notes
Select this component when a robust NPN transistor with a 100V breakdown voltage and 3.0A continuous current capability is needed. Consider the TO-220F package for effective thermal management during operation. Evaluate the saturation voltage requirements against the load characteristics to ensure adequate drive efficiency within the circuit design constraints.
Part Context
This component belongs to the MCC discrete semiconductor portfolio, specifically categorized under NPN silicon power transistors. It is designed for general-purpose applications where reliable switching and amplification are required. The product line emphasizes compliance with international safety and environmental standards for industrial electronics.
Replacement Considerations
Consult official replacement lists or equivalent manufacturer datasheets for direct pin-compatible substitutes. Verify that any alternative component maintains identical voltage ratings, current capabilities, and package dimensions to ensure seamless integration without circuit modification.
FAQ
What is the maximum collector-emitter voltage rating?
The maximum collector-emitter voltage (VCEO) is rated at 100V.
Does the standard part number include halogen-free materials?
No, the standard -BP suffix does not indicate halogen-free status; the -HF suffix must be added to the part number for halogen-free compliance.
What is the maximum operating junction temperature?
The maximum junction temperature (TJ) is +150°C.
