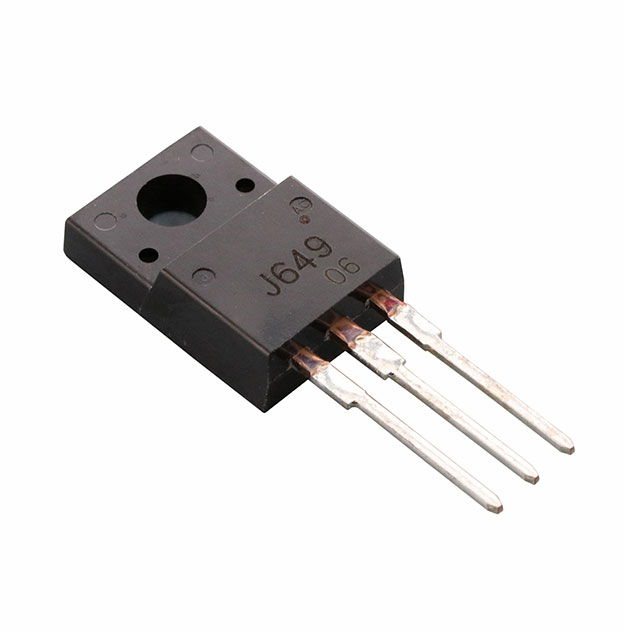

2SJ649-AZ

Description：MOSFET P-CH 60V 20A TO220
Series：-
Mfr：Renesas Electronics Corporation
Package：Bulk

SKU:8eaabbcc176a Category: Single FETs, MOSFETs Brand: Renesas Electronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET P-CH 60V 20A TO220
Series：-
Mfr：Renesas Electronics Corporation
Package：Bulk
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4V, 10V
Rds On (Max) @ Id, Vgs：48mOhm @ 10A, 10V
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：38 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1900 pF @ 10 V
FET Feature：-
Power Dissipation (Max)：2W (Ta), 25W (Tc)
Operating Temperature：150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Supplier Device Package：TO-220 Isolated Tab
Package / Case：TO-220-3 Isolated Tab

Download product information

2SJ649-AZ

Overview

The 2SJ649-AZ is a P-channel single power MOSFET manufactured by Renesas Electronics Corporation. It features a drain-source voltage rating of 60 volts and supports a continuous drain current of 20 amperes. The device exhibits an on-resistance of 48 milliohms. Power dissipation capabilities range from 2 to 25 watts depending on thermal conditions, with a maximum junction temperature of 150 degrees Celsius. It is housed in a TO-220 package with an isolated tab.

Feature Summary

P-channel enhancement mode construction for efficient switching applications
Low on-resistance characteristic enabling high current handling capability
Robust thermal design with isolated tab for effective heat dissipation

Applications

DC-DC converter circuits
Motor driver interfaces
Power supply load switches

Procurement Notes

Verify component authenticity through authorized channels as the part is marked obsolete. Confirm package integrity and pin configuration compatibility before integration. Check for available substitute components such as IXTP28P065T if production continuity is required. Ensure storage conditions meet moisture sensitivity levels specified in the datasheet.

Selection Notes

Select this component for applications requiring a 60-volt P-channel switch with 20-ampere capacity. Evaluate thermal management requirements given the 2-watt to 25-watt dissipation range. Compare on-resistance values against system efficiency targets. Verify that the TO-220 isolated tab package fits the mechanical constraints of the target PCB layout.

Part Context

This device belongs to the Renesas 2SJ649 series of single power MOSFETs. It is designed for general-purpose power switching tasks where moderate voltage and high current are needed. The series utilizes MP-45F technology for optimized performance characteristics.
