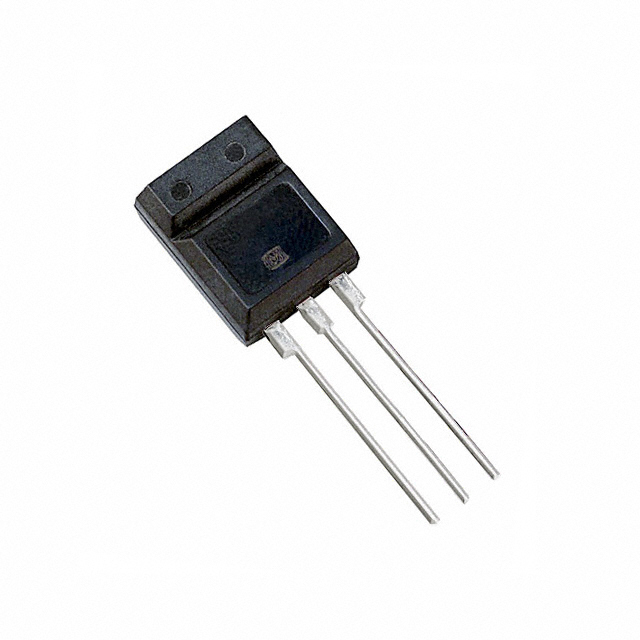

2SK0615

Description：MOSFET N-CH 80V 500MA M-A1
Series：-
Mfr：Panasonic Electronic Components
Package：Bulk

SKU:68b4b2aed74c Category: Single FETs, MOSFETs Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N-CH 80V 500MA M-A1
Series：-
Mfr：Panasonic Electronic Components
Package：Bulk
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：80 V
Current - Continuous Drain (Id) @ 25°C：500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：4Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id：3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：20V
Input Capacitance (Ciss) (Max) @ Vds：45 pF @ 10 V
FET Feature：-
Power Dissipation (Max)：1W (Ta)
Operating Temperature：150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Supplier Device Package：M-A1
Package / Case：3-SIP

Download product information

2SK0615

Overview

The Panasonic 2SK0615 is a silicon N-channel MOS FET designed for switching applications. It features low ON-resistance and high-speed switching capabilities, allowing direct drive by CMOS and TTL logic. The device operates with a drain-to-source voltage of 80V and a continuous drain current of 0.5A. Key electrical characteristics include a gate threshold voltage of 1.5V to 3.5V and an ON-resistance of 4Ω at VGS=10V. It utilizes the M-A1 package (EIAJ SC-71) for easy automatic and manual insertion.

Feature Summary

Low ON-resistance for efficient power handling
High-speed switching performance
Compatible with direct CMOS and TTL driving

Applications

Office equipment
Communications equipment
Measuring instruments
Household appliances

Procurement Notes

Verify component authenticity through authorized distributors or official Panasonic channels. Confirm that the specific batch matches the required specifications and packaging standards. Review the latest product standards before finalizing procurement decisions to ensure compliance with current manufacturing updates.

Selection Notes

Select this component for general electronic circuits requiring reliable switching with standard logic levels. Ensure the design accommodates the specified thermal dissipation requirements and respects absolute maximum ratings during transient states such as power-on and mode-switching.

Part Context

This part belongs to the Panasonic Silicon MOS FETs (Small Signal) series. It serves as a replacement for the conventional 2SK615 designation. The component is intended for standard applications in general-purpose electronic equipment rather than specialized automotive or aerospace environments.
