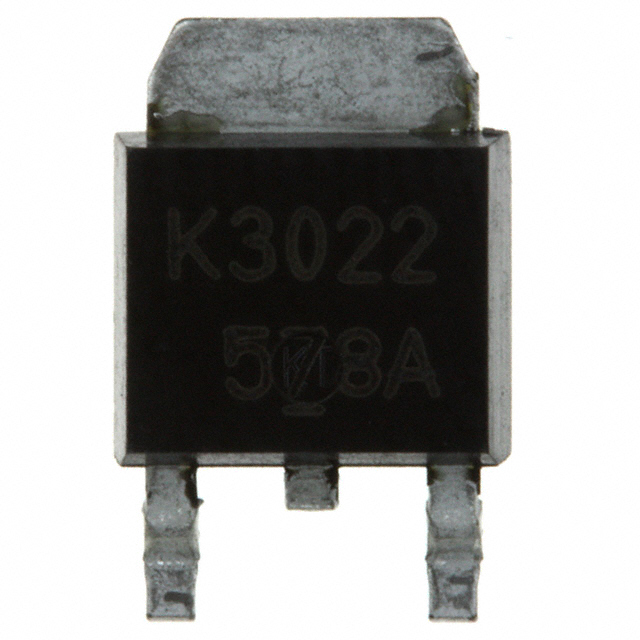

2SK302200L

Overview

The Panasonic 2SK3022 is a silicon N-channel power MOSFET designed for high-speed switching applications. It features low ON resistance and low-voltage drive capability, ensuring efficient performance in control equipment and regulators. The device guarantees avalanche energy capability and exhibits no secondary breakdown, enhancing reliability under stress. With a drain-source voltage of 60V and continuous drain current of ±5A, it supports peak currents up to 15A. The component operates within a channel temperature range up to 150°C and complies with the RoHS Directive.

Feature Summary

• Guaranteed avalanche energy capability for robust operation under transient conditions
• High-speed switching characteristics with low ON resistance for efficient power management
• Low-voltage drive compatibility simplifying gate driver circuit requirements
• Absence of secondary breakdown ensuring stable performance during overload events

Applications

• Non-contact relay systems
• Solenoid drive circuits
• Motor drive controllers
• Switching mode regulators

Procurement Notes

Verify the current lifecycle status before procurement as the product is classified under maintenance or discontinued categories. Consult official Panasonic semiconductor channels for the latest availability and obsolescence information. Ensure design compliance with absolute maximum ratings to prevent failure. Request updated product standards at the final design stage to confirm specifications remain unchanged.

Selection Notes

Select this component for applications requiring reliable high-speed switching with low conduction losses. The 60V rating and ±5A continuous current make it suitable for general electronic equipment and control systems. Consider the thermal resistance values when designing heat dissipation strategies. Verify that the low-voltage drive requirement aligns with the system's gate driver capabilities.

Part Context

This part belongs to Panasonic's silicon N-channel power MOSFET lineup, engineered for standard applications such as office equipment, communications gear, and measuring instruments. It is not intended for special applications like aerospace or life support systems without prior consultation. The U-G2 package provides a compact form factor for surface-mount integration.

Replacement Considerations

Consult Panasonic's official replacement guide for verified substitute part numbers. Cross-reference electrical parameters such as V_DSS, I_D, and R_DS(on) to ensure functional equivalence. Verify package compatibility and pinout alignment before substitution.
