2SK302500L

$1.86

Description：MOSFET N-CH 60V 30A U-DL
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9cb10f81514e Category: Single FETs, MOSFETs Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N-CH 60V 30A U-DL
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4V, 10V
Rds On (Max) @ Id, Vgs：40mOhm @ 15A, 10V
Vgs(th) (Max) @ Id：2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1200 pF @ 10 V
FET Feature：-
Power Dissipation (Max)：1W (Ta), 25W (Tc)
Operating Temperature：150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：U-DL
Package / Case：TO-252-4, DPAK (3 Leads + Tab)

Download product information

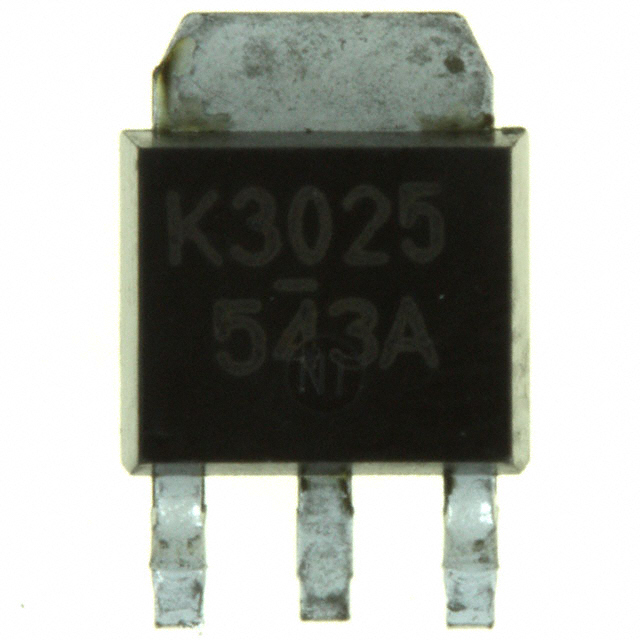

2SK302500L

Overview

The Panasonic 2SK3025 is a silicon N-channel power MOS FET designed for high-speed switching applications. It features low ON resistance and low-voltage drive capabilities, ensuring efficient performance in various electronic circuits. The device guarantees avalanche energy capability and exhibits no secondary breakdown, enhancing reliability under stress conditions. With a drain-source voltage of 60V and continuous drain current of 30A, it supports robust operation. The component operates within a channel temperature range up to 150°C and includes high electrostatic energy protection.

Feature Summary

Guaranteed avalanche energy capability for enhanced durability
Low ON resistance Ron for improved efficiency
High-speed switching characteristics with fast turn-on and turn-off times
No secondary breakdown ensures stable operation under load

Applications

Non-contact relay
Solenoid drive
Motor drive
Control equipment
Switching mode regulator

Procurement Notes

Verify the current lifecycle status before procurement as this product is listed as Maintenance/Discontinued. Confirm availability through official Panasonic channels or authorized distributors. Ensure that the specific package type U-DL matches your design requirements. Check for any updated datasheets or replacement recommendations on the manufacturer's website to ensure compatibility with modern manufacturing processes.

Selection Notes

Select this component for applications requiring reliable high-speed switching with moderate voltage ratings. Consider its low ON resistance for power efficiency in motor drives and solenoid controls. Evaluate thermal management needs given the 25W power dissipation rating. Ensure gate drive voltages align with the specified threshold and ON resistance conditions for optimal performance.

Part Context

This part belongs to Panasonic's lineup of silicon N-channel power MOS FETs. It is engineered for general electronic equipment and standard applications. The device utilizes a U-DL package, providing a compact solution for surface mount technology. Its specifications are tailored for industrial and consumer electronics where reliability and switching speed are critical factors.

Replacement Considerations

Consult Panasonic's official resources for potential substitute parts due to the discontinued status. Verify pinout compatibility and electrical parameters such as V_DSS, I_D, and R_DS(on) when selecting alternatives. Ensure that any replacement meets the same thermal and mechanical requirements for seamless integration into existing designs.
