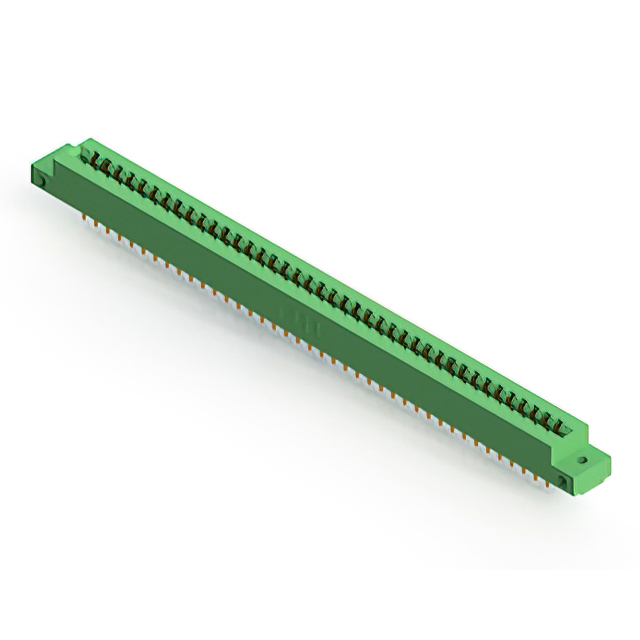

305-080-520-212 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 80POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-080-520-212
- Description：CONN EDGE DUAL FMALE 80POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：40
- Number of Positions：80
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-080-520-212
Edgeboard Connectors Overview
The EDAC Inc. 305-080-520-212 is a standard card edge connector from the 305 series, designed for dual-edge female applications. It features 80 positions with a pitch of 3.96 mm (0.156 inches) and supports a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts housed in green thermoplastic polyester insulation. Rated for 5 A current, it employs solder pin termination and is intended for panel mount installation.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration for secure card insertion
- Gold-plated copper alloy contacts ensure reliable conductivity
- Thermoplastic polyester housing provides structural stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Communication equipment backplanes
- Medical device circuit boards
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB edge profile and mounting requirements before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and authenticity.
Edgeboard Connectors Selection Notes
Select this component when a high-density dual-edge interface is required for panel-mounted applications. The 3.96 mm pitch accommodates standard board thicknesses while maintaining electrical integrity at 5 A ratings. Consider the vertical orientation and solder pin termination method for assembly workflow integration.
Edgeboard Connectors Part Context
This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse electronic interconnection needs. The 305-080 variant specifically addresses higher pin count requirements within this standardized family.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the precise dimensional tolerances or contact plating specifications required for this application.
