305-080-555-501

Edgeboard Connectors Overview

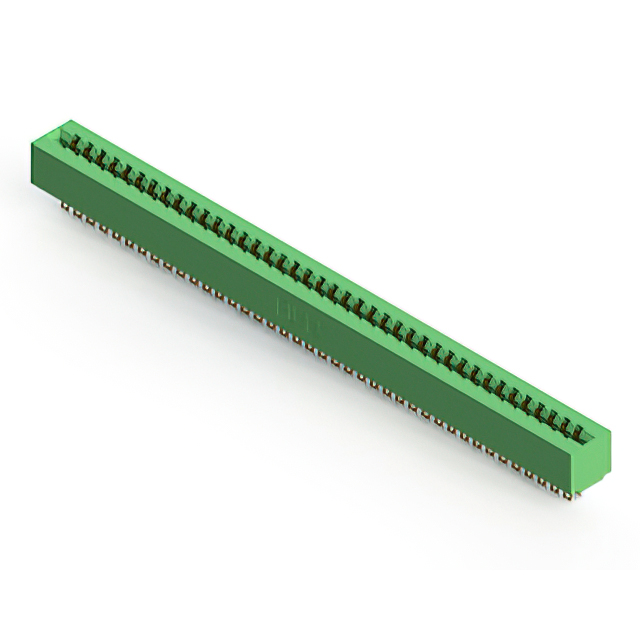

The EDAC Inc. 305-080-555-501 is a standard card edge connector from the 305 Series, designed for dual-edge female applications. It features 80 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.200 inches (5.08 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts featuring gold plating, it ensures reliable signal transmission. The unit utilizes a thermoplastic insulator body and supports solder pin termination for secure panel mounting.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified card types
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic insulator body with low profile design
• Solder pin termination for robust panel installation

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Communication equipment backplanes
• Test and measurement instrumentation modules
• Consumer electronics internal board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm mounting style and flange characteristics, as variations exist within the 305 series. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure that the selected variant matches the required PCB thickness tolerance of 0.062 inches. Cross-reference the part number against current distributor availability lists to avoid obsolete stock issues.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 80-position interface is required for vertical panel mounting. The 3.96 mm pitch accommodates standard board layouts while maintaining signal integrity. Consider the gold plating thickness if harsh environmental conditions are present. Evaluate the mechanical stability provided by the solder pin termination against vibration requirements in the target application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which offers a wide range of card edge connectors for various industrial and commercial applications. The series is characterized by its modular design, allowing for different position counts and mounting options. The 305-080-555-501 specifically addresses needs for higher density connections in compact electronic assemblies, providing a standardized solution for board-to-panel interfaces.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series variants with matching 80-position counts and 3.96 mm pitch. Verify compatibility with existing PCB footprints before replacing. Alternative manufacturers may offer similar specifications but require mechanical re-validation.
