305-082-521-278

Edgeboard Connectors Overview

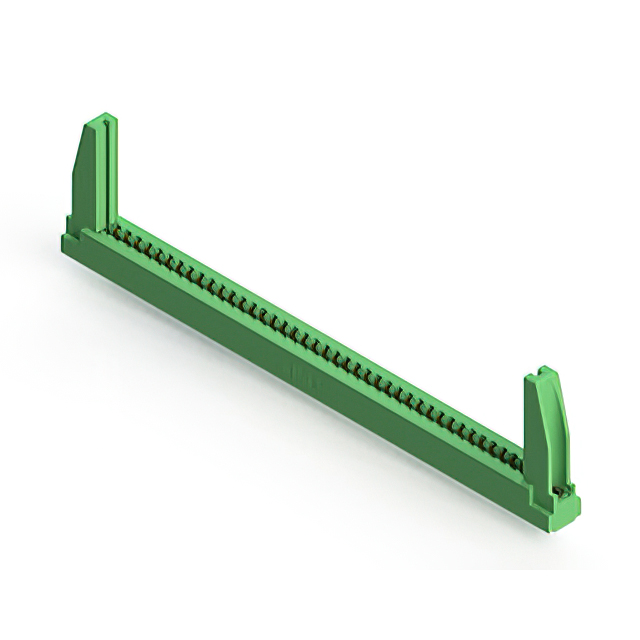

The EDAC Inc. 305-082-521-278 is a standard card edge connector from the 305 series, designed for panel mount applications with vertical orientation. It features 82 positions arranged in two rows with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.140 inches (3.56 mm). The connector utilizes gold-plated copper alloy contacts with a solder pin termination type. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and provides a continuous current rating of 5 A.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure positioning
• Features a low profile insulator body constructed from thermoplastic polyester
• Provides high dielectric strength with an 1800VACrms insulation capability

Edgeboard Connectors Applications

• High-density computing system interconnects
• Industrial control panel interfaces
• Aerospace communication network modules

Edgeboard Connectors Procurement Notes

Verify that the specific suffix 278 corresponds to the required flange characteristics, such as threaded inserts or diameter specifications, as these details define the mechanical mounting configuration. Confirm compliance with RoHS3 standards and ensure the selected variant matches the intended PCB thickness tolerance of 1.37mm to 1.78mm for proper engagement.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-row interface is required for vertical panel mounting. Ensure the design accommodates the 0.156-inch pitch and supports the necessary polarizing key integration. Verify that the application environment remains within the specified operating temperature range of -40°C to +105°C for reliable performance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series, which specializes in robust card edge connectors for rack and panel applications. The series is widely utilized in sectors requiring durable interconnect solutions, including medical, industrial, and clean technology fields. EDAC emphasizes rigorous quality assurance and global logistics support for these components.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 305-series variants like 305-082-521-201 if different flange configurations are needed. Verify compatibility with existing polarizing key requirements and ensure the replacement maintains the same 5A current rating and 1800VACrms insulation properties.
