305-082-555-212

Edgeboard Connectors Overview

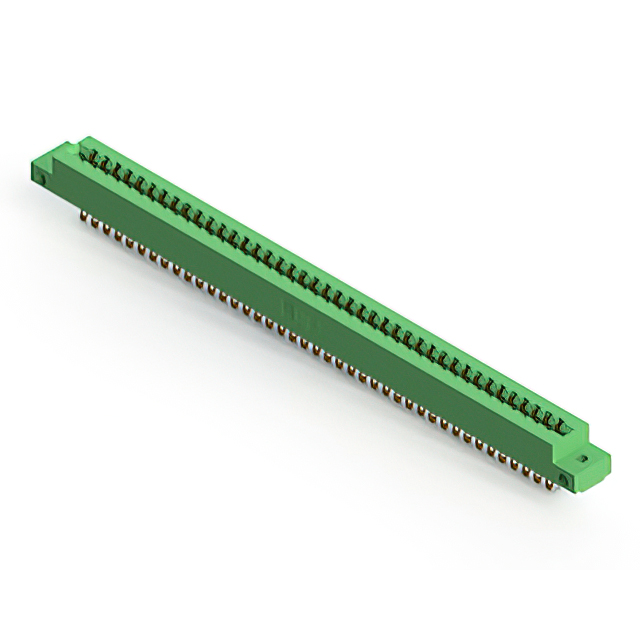

The EDAC Inc. part number 305-082-555-212 is a standard card edge connector from the 305 series, designed for panel mount installation with a vertical orientation. It features a dual female configuration with 82 positions and a pitch of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulation material. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for board insertion
• Vertical panel mount style with solder lug termination
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester housing for structural integrity

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Communication equipment backplanes
• Automotive electronics modules
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required PCB thickness and mounting hardware. Confirm that the dual female configuration matches the target card edge design. Cross-reference the RoHS compliance status with current regulatory requirements for the intended market. Ensure the panel mount style aligns with the mechanical enclosure specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count vertical interface is required for panel-mounted applications. The 82-position count and 3.96 mm pitch define the spatial constraints for the host board layout. Consider the 5 A current rating for power distribution needs. Verify that the thermoplastic polyester material meets environmental resistance standards for the operating environment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which provides standardized card edge solutions. The series offers various position counts and termination styles to accommodate different board densities. The 305-082 variant specifically addresses applications needing robust dual-row connectivity in a vertical form factor.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series parts with matching 82 positions and 3.96 mm pitch, such as 305-082-521-212 or 305-082-555-503, provided the termination style and contact plating meet the design requirements.
