305-084-520-207

Edgeboard Connectors Overview

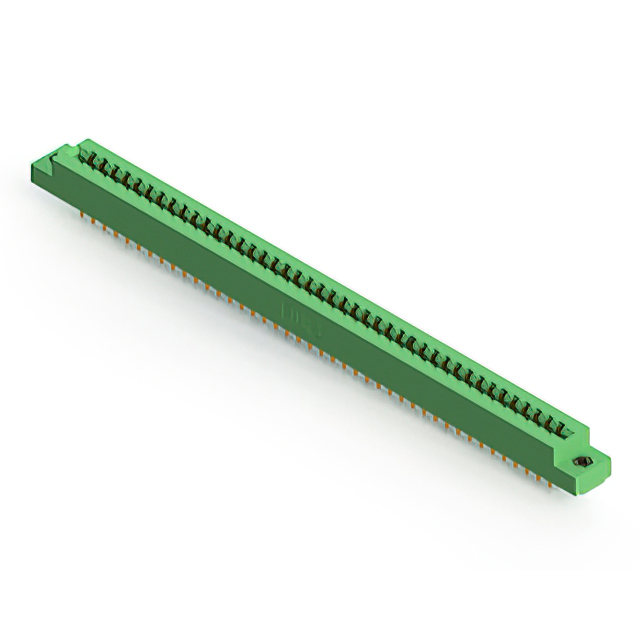

The EDAC Inc. 305-084-520-207 is a standard card edge connector from the 305 series, designed for panel mount applications with a vertical orientation. It features 84 positions arranged in a dual-row configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes copper alloy contacts with gold plating and accepts wire hole termination via solder pins. It supports PCB thicknesses of 1.57 mm and provides a 5 A continuous current rating.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure positioning
• Dual-row design accommodates high-density board connections
• Gold-plated copper alloy contacts ensure reliable signal transmission

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring robust interconnects
• Industrial control systems utilizing card edge technology
• High-current signal distribution in modular hardware designs

Edgeboard Connectors Procurement Notes

Verify the specific pin count and row configuration against the official datasheet before procurement. Confirm that the target printed circuit board thickness aligns with the specified 1.57 mm requirement to ensure proper mechanical fit. Check for any regional shipping restrictions or availability limitations associated with this specific manufacturer part number.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with a 3.96 mm pitch is required for panel mounting. Ensure the application environment supports the specified current rating and that polarizing key compatibility is necessary for the assembly process. Verify insulation material properties against environmental conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of card edge connectors, which are characterized by their panel-mount capability and vertical installation style. The series offers various position counts and pitch options, with this specific model providing an 84-position dual-row interface suitable for demanding industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 series ordering guide for verified substitute part numbers. Ensure any replacement maintains the same 3.96 mm pitch, dual-row configuration, and panel-mount specifications to guarantee mechanical and electrical compatibility.
