Edgeboard Connectors Overview

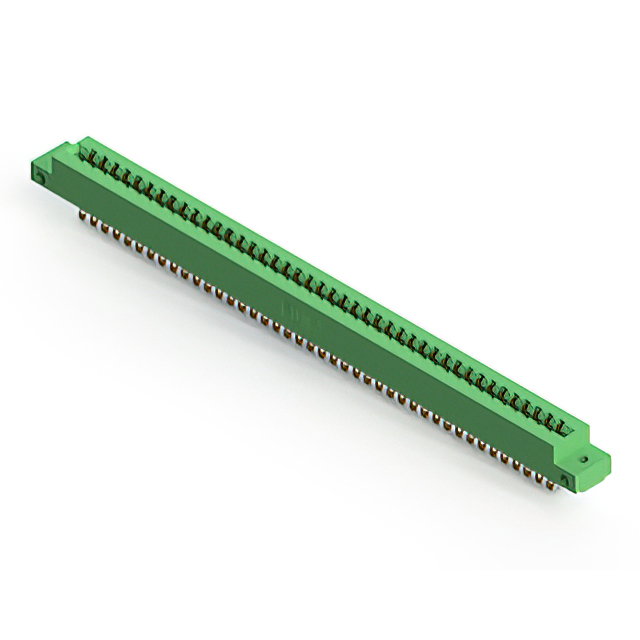

The EDAC Inc. 305-084-555-212 is a standard card edge connector designed for panel mount applications with a vertical orientation. It features an 84-position dual female configuration with a contact spacing of 0.156 inches (3.96mm) and a row spacing of 0.140 inches (3.56mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with copper alloy contacts featuring gold plating, the housing utilizes thermoplastic polyester material in green coloration.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board retention
• Low profile insulator body design for compact integration
• Gold-plated copper alloy contacts for reliable conductivity
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard board thicknesses
• Automotive electronics modules needing high-density connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required board thickness and contact plating specifications. Confirm that the dual female configuration aligns with the target PCB edge design. Cross-reference the manufacturer datasheet for precise dimensional tolerances and mating force requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided connection is required for 0.062-inch thick boards. Ensure the application environment supports the operating temperature range specified by the manufacturer. Verify that the panel mount footprint matches the mechanical constraints of the enclosure design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its use of thermoplastic polyester housings and gold-plated contacts. It provides a reliable interconnection solution for single or double-sided PCBs within industrial and commercial electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 Series Ordering Guide for direct substitutes. Verify equivalent parameters such as 84 positions, 0.156-inch pitch, and dual female configuration before considering alternative part numbers.
