305-084-556-512

Edgeboard Connectors Overview

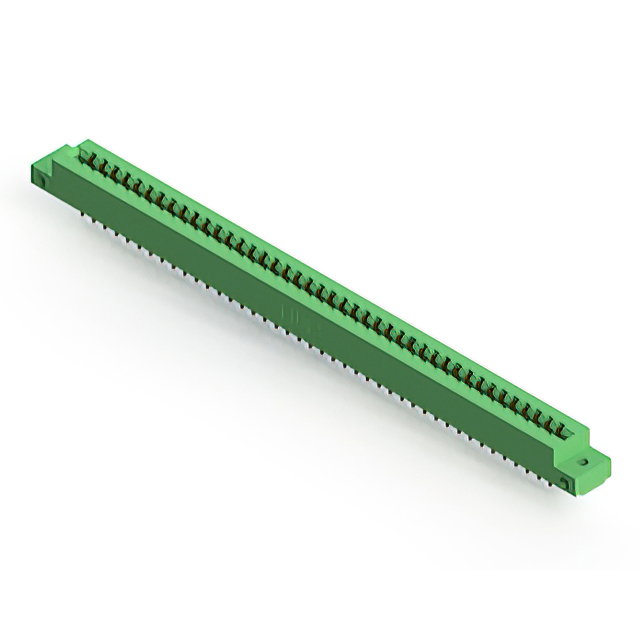

The EDAC Inc. model 305-084-556-512 is a standard card edge connector designed for dual female interface applications. It features 84 positions arranged in two rows with a 0.156-inch (3.96 mm) pitch. The component utilizes gold-plated copper alloy contacts and thermoplastic polyester insulation, rated for 5 A current at temperatures ranging from -40°C to +105°C. It supports board thicknesses of 0.054 to 0.070 inches and employs surface mount termination.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for non-specified card edge boards
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester housing providing thermal stability
• Surface mount solder pin termination for secure PCB attachment

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Automotive electronic module connections
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact termination style and plating specifications. Ensure compatibility with target PCB layout dimensions and mounting requirements before procurement. Confirm RoHS compliance status through manufacturer datasheets.

Edgeboard Connectors Selection Notes

Select this connector when high-density dual-row connectivity is required for panel-mounted or surface-mount applications. Evaluate the 0.156-inch pitch against available board space constraints. Consider the 5 A current rating and operating temperature range relative to the system's thermal environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options. The 305-084 variant provides a high-contact count solution within the family, maintaining consistent dimensional standards across related models.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part numbers sharing the same 305 series base but differing only in suffix codes for alternative termination styles. Verify mechanical fit and electrical ratings match before substituting.
