306-006-400-112

Edgeboard Connectors Overview

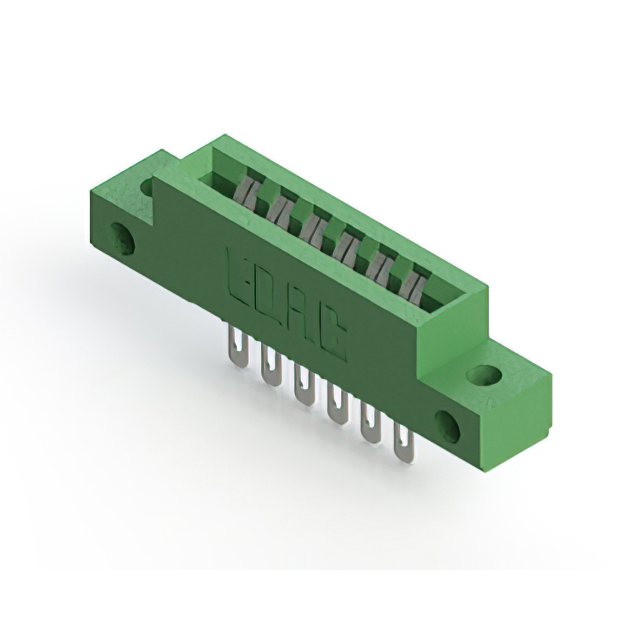

The EDAC Inc. 306-006-400-112 is a standard card edge connector featuring 6 positions in a single row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed to accept printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs copper alloy contacts with tin plating, housed within a green thermoplastic polyester insulator body. Rated for 5 A current and offering 5 GOhms insulation resistance, it operates within a temperature range of -40°C to +105°C. This vertical panel mount receptacle provides reliable electrical interconnection for dual-edge card applications.

Edgeboard Connectors Feature Summary

• Accepts 0.062 inch nominal thickness PCBs
• Low profile insulator body design
• Single centerline row configuration

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies
• Dual-edge card interface systems
• Vertical board-to-board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact plating and material specifications. Ensure the selected variant matches the required PCB thickness tolerance of 0.062 inches. Confirm RoHS compliance status through the manufacturer's latest datasheet before integration into regulated products.

Edgeboard Connectors Selection Notes

Select this connector when a low-profile, single-row solution is required for 0.062 inch thick cards. Verify that the 3.96 mm pitch aligns with the target PCB layout. Consider the vertical mounting style and panel installation requirements. Confirm that the tin-plated contacts meet the environmental and conductivity needs of the application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles. The 306 model line typically features thermoplastic housings and copper alloy contacts. This specific part represents a compact 6-position option within the broader family of industrial-grade interconnect solutions.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts from the EDAC 306 series or other manufacturers offering 6-position, 0.156 inch pitch card edge connectors. Ensure mechanical dimensions, specifically the 0.062 inch board thickness acceptance, are identical. Verify electrical ratings and mounting configurations match the original design requirements.
