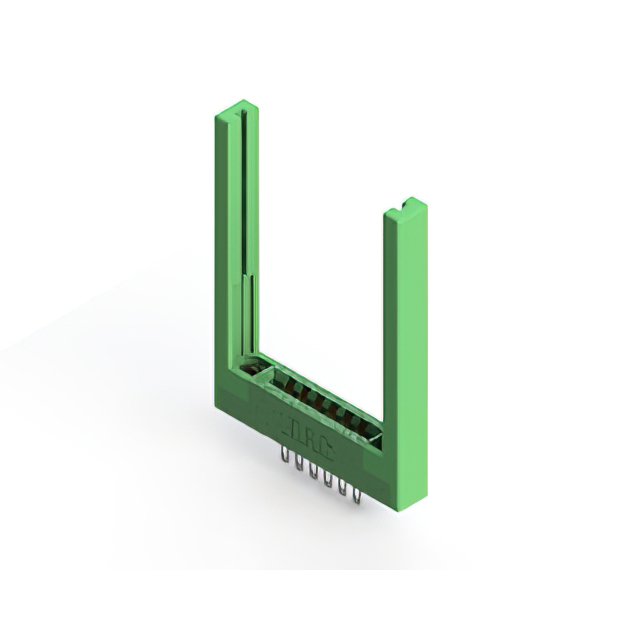

306-006-500-168

$7.48

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:57b8b724a6ae Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-006-500-168 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-006-500-168

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-006-500-168

306-006-500-168

Edgeboard Connectors Overview

The EDAC Inc. 306-006-500-168 is a standard card edge connector designed for dual-edge female applications. It features 12 positions with a 0.156-inch (3.96mm) pitch across two rows. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. It supports board thicknesses ranging from 0.054 to 0.070 inches. The unit employs solder lug termination and is rated for operation between -40°C and +105°C, ensuring reliable performance in various electronic assemblies.

Edgeboard Connectors Feature Summary

Dual-edge female configuration for secure board insertion
Gold-plated contacts ensure low resistance and corrosion resistance
Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

Industrial control panel interconnections
Telecommunications equipment backplanes
Consumer electronics module mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact tail length and plating specifications. Ensure the target PCB design accommodates the required 0.156-inch pitch and dual-row layout. Confirm compliance with RoHS3 standards if environmental regulations apply to the final assembly. Cross-reference the manufacturer part number with distributor catalogs to avoid confusion with similar series variants.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connection is required for boards within the specified thickness range. The 0.156-inch pitch suits applications needing wider spacing than standard 0.100-inch connectors. Verify that the operating temperature environment remains within the -40°C to +105°C limits. Consider the solder lug termination method for panel or chassis mounting requirements rather than direct PCB surface mount integration.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series of standard card edge connectors. The series offers various position counts and pitch options for general-purpose electronic connections. The 306 series typically utilizes thermoplastic polyester insulators and gold-plated copper alloy contacts. This specific model represents a mid-range position count variant within the broader product family.
