306-007-420-108

Edgeboard Connectors Overview

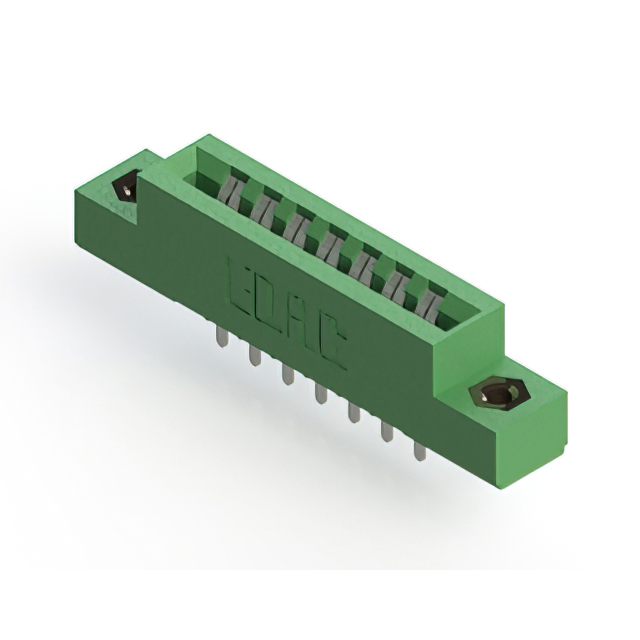

The EDAC Inc. 306-007-420-108 is a standard card edge connector receptacle designed for panel mount applications. It features a single-sided configuration with 7 positions and a 3.96 mm (0.156 inch) pitch. The unit utilizes gold-plated copper alloy contacts and solder pin termination for secure board attachment. Rated for 5 A current, it accommodates PCB thicknesses of 1.57 mm. The housing is constructed from thermoplastic polyester, ensuring durability in operating temperatures ranging from -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-sided card edge receptacle design for vertical panel mounting
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability
• Solder pin termination facilitates direct printed circuit board integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Panel-mounted electronic instrumentation
• Communication equipment backplanes
• Test and measurement device interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to confirm contact plating, housing color, and flange specifications. Ensure the target application requires the 3.96 mm pitch and 1.57 mm board thickness compatibility. Confirm RoHS compliance status if required by project regulations. Cross-reference the part number with the latest EDAC datasheet to validate availability and lead times before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a single-sided, low-profile connection is required for panels supporting 1.57 mm thick boards. The 7-position count suits moderate I/O density needs. Verify that the 5 A current rating aligns with the electrical load requirements. Consider the vertical orientation and panel mount style for enclosure integration. Compare against dual-sided alternatives if higher pin counts or different mechanical constraints are necessary.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which offers extensive customization options for card edge connectors. The series supports various position counts, pitches, and termination styles. The 306-007-420-108 represents a specific configuration within this family, tailored for single-sided, seven-contact applications. The series is known for its robust construction and wide range of material and plating choices to meet diverse environmental and electrical standards.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 7-position count, 3.96 mm pitch, and single-sided geometry. Verify identical panel mount requirements and 1.57 mm board thickness tolerance. Check for equivalent current ratings and temperature ranges. Consult EDAC's cross-reference guides for alternative part numbers within the 306 series that may offer updated plating or housing variations while maintaining mechanical compatibility.
