306-007-420-112

Edgeboard Connectors Overview

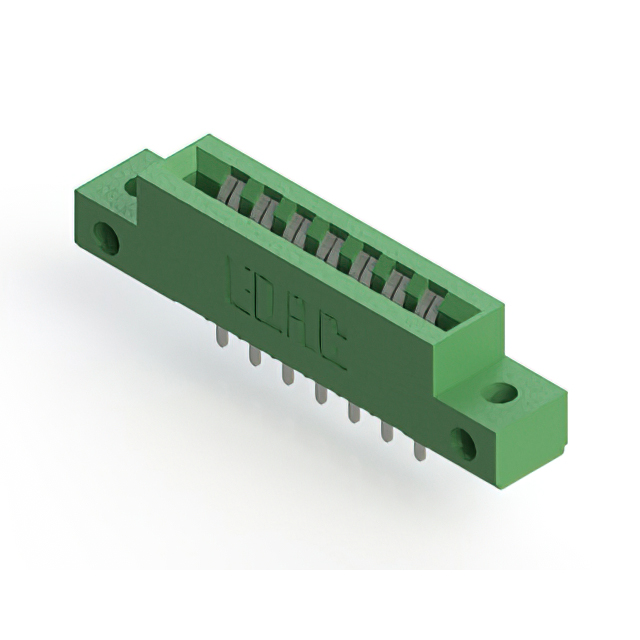

The EDAC Inc. model 306-007-420-112 is a standard card edge connector receptacle designed for panel mount applications. It features a dual female configuration with 14 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The housing is constructed from green thermoplastic polyester, and the contacts are made of copper alloy with gold plating to ensure reliable signal transmission.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Panel mount installation style with vertical orientation
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester insulator body for durability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count and contact finish. Ensure the target PCB thickness falls within the specified acceptance range of 0.062 inches. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface is required for panel-mounted assemblies. The 0.156-inch pitch accommodates standard board layouts. Verify that the mechanical constraints of the enclosure allow for the vertical mounting profile and that the thermal rating meets the operational environment requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which provides a range of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic packaging needs. The 306-007-420-112 specifically addresses applications requiring a 14-position dual female interface with robust mechanical retention.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 306 series variants for alternative position counts. Verify compatibility with mating card edge connectors regarding pitch and contact geometry. Consult official substitution guides for updated component revisions.
