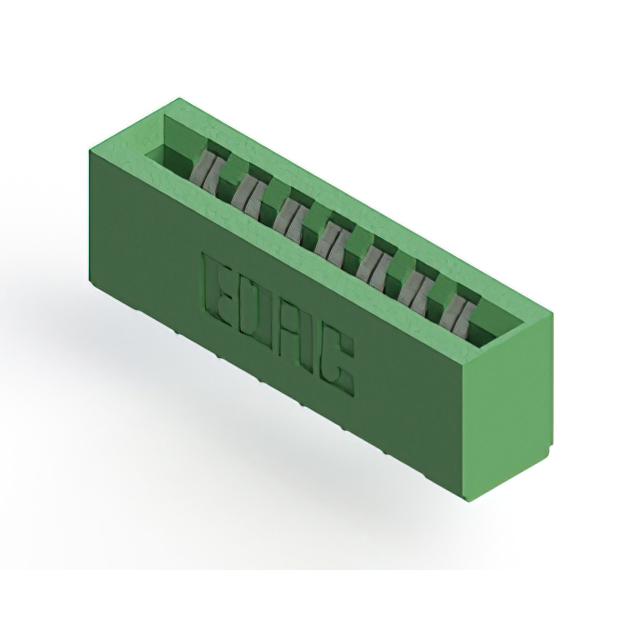

306-007-421-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-007-421-101
- Description：CONN EDGE DUAL FMALE 14POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-007-421-101
Edgeboard Connectors Overview
The EDAC Inc. 306-007-421-101 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features 7 positions and a contact spacing of 3.96 mm (0.156 inches). The connector utilizes copper alloy contacts with tin plating and accepts board thicknesses ranging from 1.37 mm to 1.78 mm. Constructed with thermoplastic polyester insulation, it supports solder pin termination and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Vertical panel mount design for secure installation
- Dual-edge female contact configuration
- Tin-plated copper alloy contacts for reliable conductivity
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Consumer electronics assemblies
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to ensure correct contact type and plating specifications. Confirm that the required board thickness falls within the specified 1.37 mm to 1.78 mm range before integration. Check current availability status as distribution may vary by region.
Edgeboard Connectors Selection Notes
Select this component when a low-profile, vertical card edge interface is required for dual-sided PCBs. Ensure the mating card meets the mechanical tolerance for the 3.96 mm pitch. Consider the thermal rating of the thermoplastic polyester housing if operating near the upper limit of the specified temperature range.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 Series, which provides standard card edge connectors for general-purpose interconnect needs. The series offers various position counts and mounting styles, utilizing durable materials suitable for repeated insertion cycles in commercial and industrial environments.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 306 series variants for different position counts or plating options. Verify mechanical compatibility with existing panel cutouts and PCB layouts before substituting.
