306-007-500-108

Edgeboard Connectors Overview

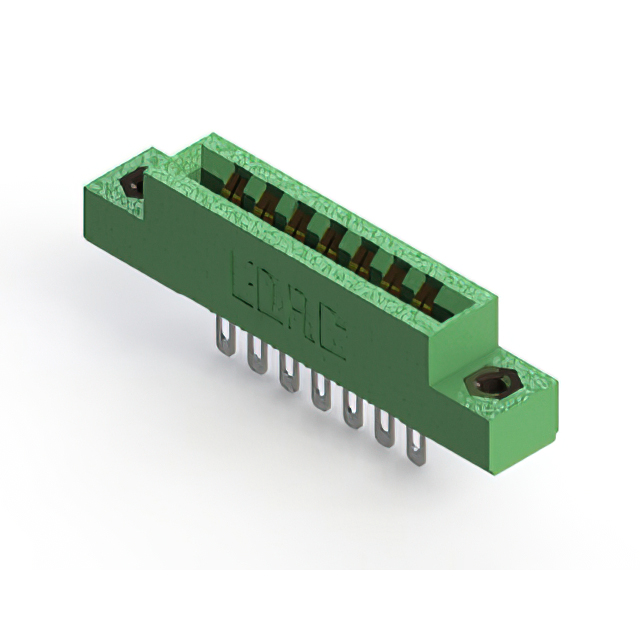

The EDAC Inc. 306-007-500-108 is a standard card edge connector from the 306 series, designed for PCB mounting applications. It features a dual-edge female configuration with 14 positions and a 0.156-inch (3.96mm) centerline spacing. The contacts are made of copper alloy with gold plating to ensure reliable signal transmission. The housing is constructed from green thermoplastic polyester insulation, providing durability and electrical stability. This component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for enhanced conductivity
• Green thermoplastic polyester insulation housing
• Flush mount design with threaded insert flange feature

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment board connections
• Consumer electronics assembly with standard card edge interfaces
• Automotive electronic modules needing high-temperature stability

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact mechanical dimensions and flange configurations. Ensure compatibility with target PCB thickness and mating card edge specifications before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm RoHS compliance status if required by project regulations.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface with 14 positions is required. The 0.156-inch pitch suits standard board layouts. Consider the flush mount flange with threaded inserts for secure panel integration. Evaluate the 5 A current rating and -40°C to +105°C operating range against environmental conditions. Ensure the gold plating meets corrosion resistance needs for the application environment.

Edgeboard Connectors Part Context

This component belongs to EDAC's 306 series of card edge connectors, which are widely used in various electronic assemblies. The series offers standardized dimensions and reliable performance for board-to-board or board-to-backplane connections. The 306-007-500-108 variant specifically addresses applications requiring dual-edge access and secure mounting via threaded hardware.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-references. Verify pin count, pitch, and mounting style match exactly. Check alternative suppliers for equivalent specifications if supply constraints exist.
