306-007-520-112

Edgeboard Connectors Overview

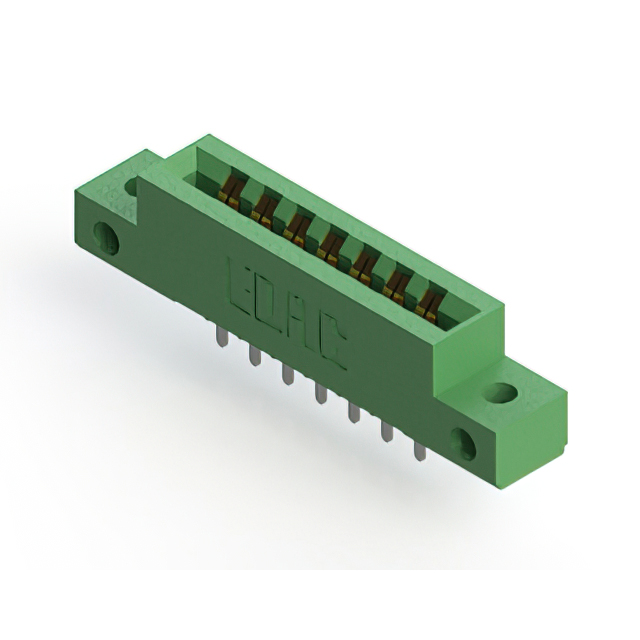

The EDAC Inc. 306-007-520-112 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. It features a dual female configuration with 14 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96mm) centerline spacing and is compatible with board thicknesses of 0.062 inches. Constructed with copper alloy contacts that are gold-plated, it ensures reliable electrical performance within a thermoplastic housing.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure installation
• Dual female contact configuration for robust signal transmission
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic insulator housing for structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring vertical interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation panels
• General-purpose electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required board thickness and termination style. Confirm RoHS compliance status if environmental regulations apply to your assembly process. Cross-reference the pin count and spacing against schematic requirements before finalizing procurement orders to prevent integration errors.

Edgeboard Connectors Selection Notes

Select this component when vertical orientation and dual-row connectivity are required for PCB integration. Ensure the mating board thickness aligns with the connector's specified range to maintain proper contact pressure. Consider the thermoplastic material properties for thermal management needs in the target application environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, which are widely used in various electronic industries. The series offers multiple position counts and spacing options to accommodate different design constraints. As a specialized interconnect solution, it supports high-density connections in compact form factors.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 306 series variants with matching pin counts and spacing. Verify mechanical dimensions and contact plating specifications when considering alternative manufacturers. Ensure any replacement maintains the same vertical mounting angle and dual female contact type.
