306-008-400-108

Edgeboard Connectors Overview

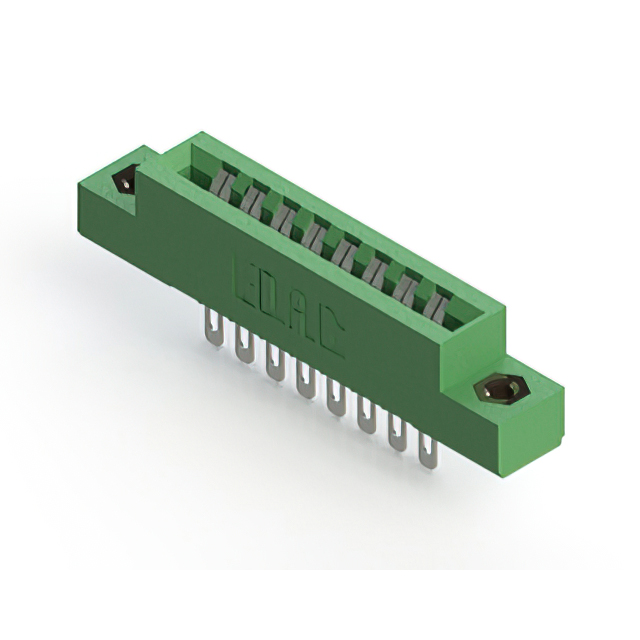

The EDAC 306-008-400-108 is a standard card edge connector receptacle featuring 16 positions with a dual female contact configuration. It utilizes a 0.156-inch (3.96 mm) pitch and supports a board thickness of 1.57 mm. The component employs solder eyelet termination for secure PCB attachment and is designed for panel mount installation. Constructed with copper alloy contacts finished in tin, the housing is made from thermoplastic polyester. This vertical orientation connector belongs to the EDAC 306 series.

Edgeboard Connectors Feature Summary

• Dual female cantilever contact design ensures reliable signal transmission through card edge insertion.
• Solder eyelet termination provides robust mechanical stability and electrical connection to the printed circuit board.
• Panel mount construction facilitates secure integration into equipment enclosures and chassis systems.

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify RoHS compliance status and specific contact finish requirements against project specifications. Confirm that the tin-plated contacts meet environmental constraints. Ensure panel mounting hardware compatibility with the designated enclosure design. Validate that the 1.57 mm board thickness aligns with the target PCB manufacturing tolerances before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a 16-position vertical card edge interface is required with panel mounting capabilities. The dual female configuration suits applications needing mating with single-sided or double-sided edge cards. Consider the tin contact finish for general-purpose environments where gold plating is not strictly mandated by corrosion resistance needs.

Edgeboard Connectors Part Context

This component is part of the EDAC 306 series, which offers a range of standard card edge connectors. The series provides various position counts and mounting styles to support diverse electronic assembly requirements. The 306-008-400-108 specifically addresses needs for moderate density connections with durable panel-mount solutions.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 306 series variants for different position counts. Verify dimensional compatibility with existing tooling and fixtures. Check alternative suppliers offering equivalent 0.156 inch pitch dual female connectors if supply chain constraints exist.
