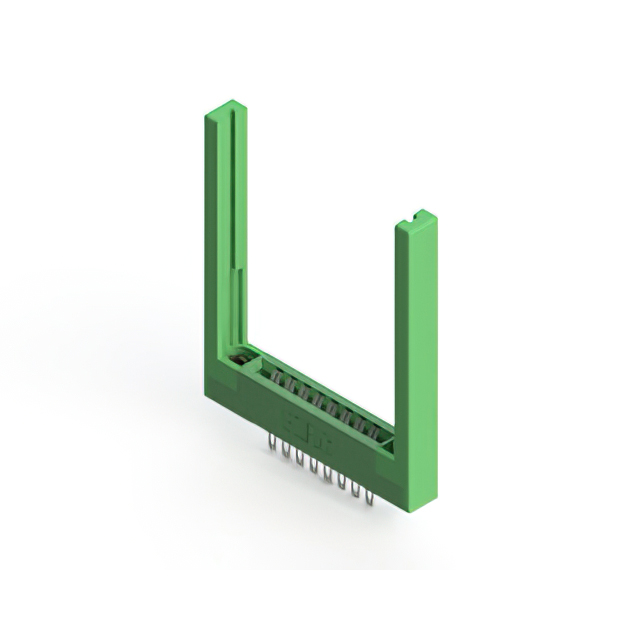

306-008-400-168 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-008-400-168
- Description：CONN EDGE DUAL FMALE 16POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：8
- Number of Positions：16
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-008-400-168
Edgeboard Connectors Overview
The EDAC Inc. 306-008-400-168 is a dual-edge female card edge connector from the 306 Series, designed for panel mounting via solder lug termination. It features 16 positions with a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches. The connector utilizes copper alloy cantilever contacts with a 10.0µin gold plating finish over a thermoplastic polyester insulator body.
Edgeboard Connectors Feature Summary
- Accepts nominal 0.062 inch thick PCBs
- Low profile insulator body design
- Single centerline row configuration
Edgeboard Connectors Applications
- Panel-mounted electronic interconnects
- Standard card edge applications
- Industrial control systems
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's current 306 Series Ordering Guide to ensure correct pin count, termination style, and plating specifications. Confirm RoHS3 compliance status and lead time requirements directly with authorized distributors prior to procurement.
Edgeboard Connectors Selection Notes
Select this component when a low-profile, dual-edge female connector with 0.156-inch spacing is required. Ensure the target PCB thickness falls within the 0.054 to 0.070-inch range and that the application environment supports the specified operating temperature of -40°C to 105°C.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series offers various configurations for panel mounting, utilizing thermoplastic polyester insulation and gold-plated cantilever contacts for reliable signal transmission in general-purpose electronic assemblies.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC 306 Series cross-reference documentation for verified substitute part numbers. Do not assume interchangeability with other series or manufacturers without verifying mechanical dimensions and electrical ratings.
