306-008-500-103

Edgeboard Connectors Overview

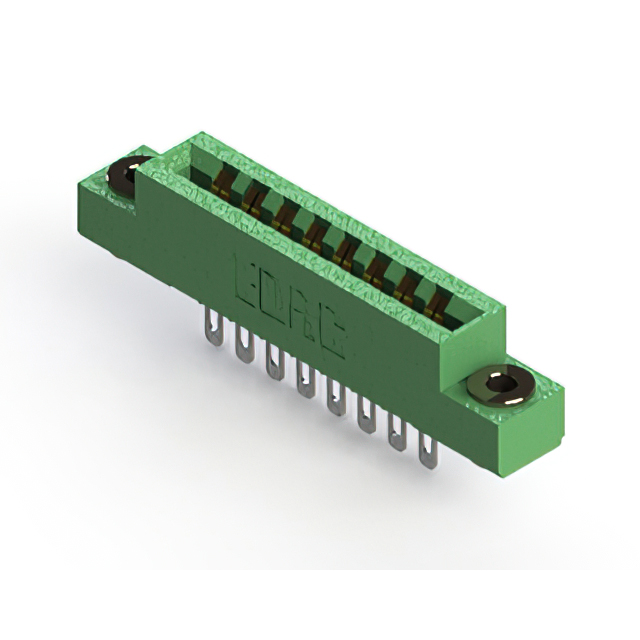

The EDAC Inc. model 306-008-500-103 is a standard card edge connector receptacle designed for vertical panel mount applications. It features a dual female configuration with 16 positions arranged in two rows, utilizing a 3.96 mm (0.156 inch) pitch. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The housing is made of thermoplastic polyester, providing structural integrity and insulation. This component supports a maximum operating temperature of +105°C and a minimum of -40°C, with an insulation resistance rating of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for secure board interface
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Panel-mounted circuit board interfaces
• High-density electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination style, and plating thickness. Ensure that the selected variant matches the required PCB thickness and mounting orientation specifications for the target application environment.

Edgeboard Connectors Selection Notes

Select this component when a robust, vertically mounted card edge solution is required for industrial environments. The 3.96 mm pitch accommodates larger trace widths, while the gold plating ensures longevity in high-cycle mating scenarios. Confirm compatibility with the mating card edge thickness before integration.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and row configurations, catering to diverse PCB layout requirements. The 306 series is characterized by its durable construction and consistent electrical performance across different industrial sectors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306, 316, and 356 Series Ordering Guide for verified substitute part numbers. Cross-reference pitch, row count, and termination type to ensure mechanical and electrical compatibility with existing designs.
