306-008-500-104

Edgeboard Connectors Overview

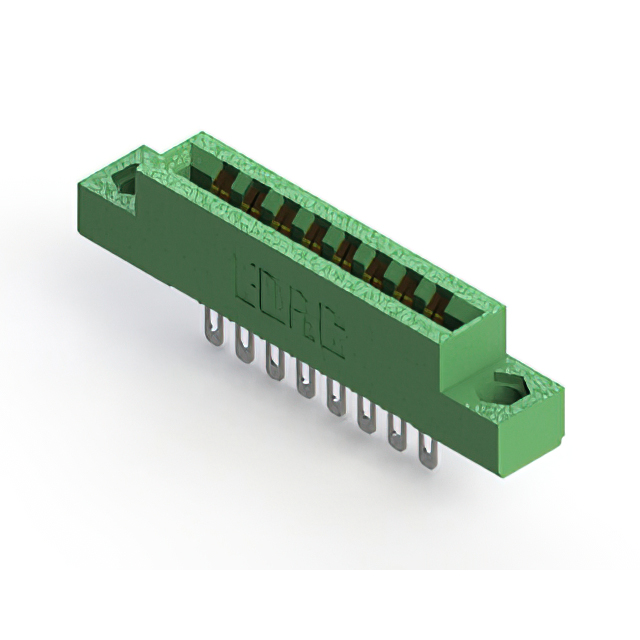

The EDAC Inc. 306-008-500-104 is a standard card edge connector receptacle featuring 16 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed for .062 inch (1.57 mm) nominal thickness printed circuit boards. The component employs gold-plated copper alloy contacts with a solder termination type for secure PCB mounting. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row receptacle design accommodates double-sided edge cards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Low-profile thermoplastic polyester insulator body construction

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count, plating thickness, and orientation requirements. Ensure compatibility with the target PCB board thickness of 1.57 mm before procurement. Cross-reference the RoHS compliance status with current regulatory standards applicable to the intended deployment region.

Edgeboard Connectors Selection Notes

Select this component when a low-profile dual-edge connector is required for 16-position applications. Confirm that the 3.96 mm pitch aligns with the existing board layout constraints. Evaluate the 5 A current rating against peak operational loads to ensure adequate thermal performance under continuous duty cycles.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides robust interconnection solutions for various electronic assemblies. The 306 series is characterized by its durable construction and consistent electrical performance across multiple industrial environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitute part numbers within the same series. Verify mechanical dimensions and electrical ratings match the original design specifications before implementing any alternative components.
