306-008-521-101

Edgeboard Connectors Overview

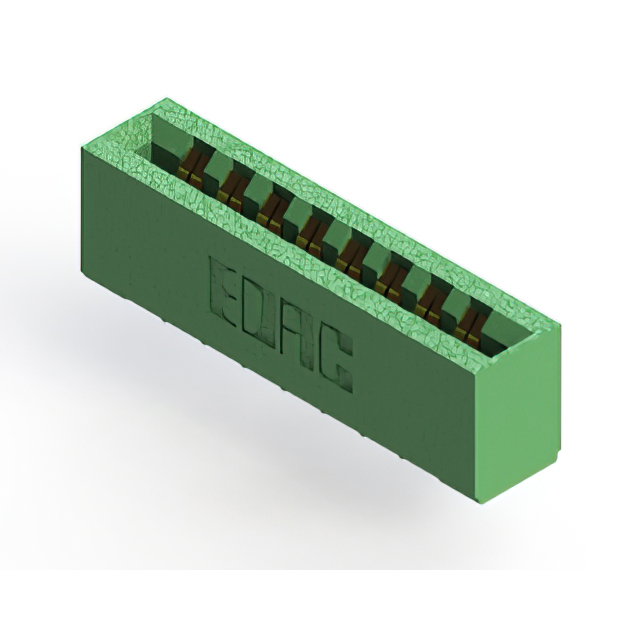

The EDAC Inc. 306-008-521-101 is a standard card edge connector from the 306 series, designed for through-hole mounting. It features an 8-position configuration with a dual-edge female contact interface and a 3.96 mm (0.156 inch) pitch. The unit utilizes gold-plated copper alloy contacts housed in a green thermoplastic polyester body. Rated for 5 A current, it supports PCB thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated copper alloy contacts for reliable conductivity
• Through-hole termination for stable mechanical attachment

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific pin count and pitch against the target PCB footprint before ordering. Confirm that the housing color and material specifications align with environmental requirements. Ensure the through-hole soldering process matches the component's thermal ratings. Cross-reference the manufacturer datasheet for precise dimensional tolerances to guarantee proper fit.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge female connector with a 3.96 mm pitch is required. The 8-position layout suits compact circuit designs needing moderate I/O density. The through-hole mounting style provides robust mechanical stability compared to surface-mount alternatives. Verify compatibility with the intended PCB thickness and operating temperature range.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and pitch options to accommodate different board densities. The 306-008 variant specifically addresses applications requiring eight connection points with a 0.156-inch spacing, balancing size and connectivity needs.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 306 series connectors with matching 8-position and 3.96 mm pitch specifications. Ensure any replacement maintains the same dual-edge female contact type and through-hole mounting style. Verify that alternative parts meet identical electrical ratings and temperature ranges.
