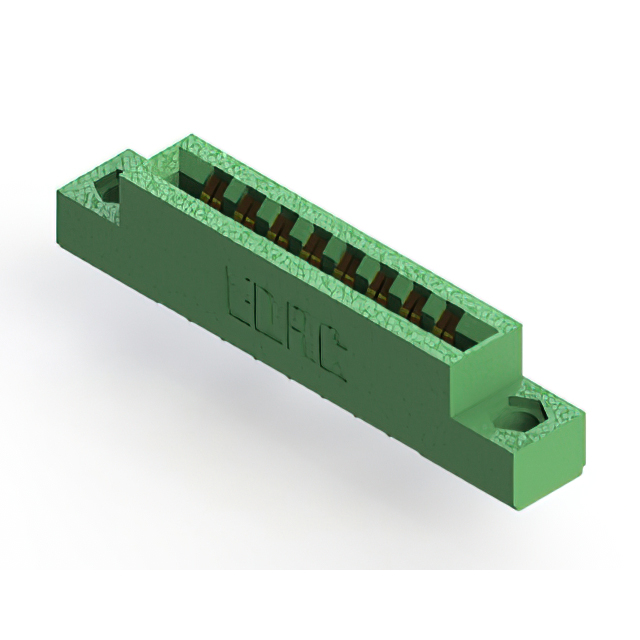

306-008-521-104

$6.44

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:1cee76723816 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-008-521-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-008-521-104

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-008-521-104

306-008-521-104

Edgeboard Connectors Overview

The EDAC Inc. 306-008-521-104 is a standard card edge connector receptacle featuring 8 positions in a dual-row configuration with a 3.96 mm pitch. Designed for through-hole mounting, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. It accommodates a board thickness of 1.57 mm and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Dual-edge female contact design for secure card insertion
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic polyester housing offers thermal stability

Edgeboard Connectors Applications

Medical interconnect solutions such as ventilators
Ambulance communication systems
CPAP machine connections
General industrial circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix '104' against official EDAC documentation to confirm exact termination style and mounting variations. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the 5 A current rating meets the application's electrical requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 8-position card edge interface is required for medical or industrial environments. Consider the 3.96 mm pitch and through-hole soldering method for assembly constraints. Evaluate the +105°C maximum operating temperature against environmental conditions to ensure long-term reliability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is engineered for robust performance in demanding sectors including healthcare and agriculture. The 306-008-521-104 variant specifically addresses applications requiring dual-edge connectivity with high durability.
