306-008-521-107

Edgeboard Connectors Overview

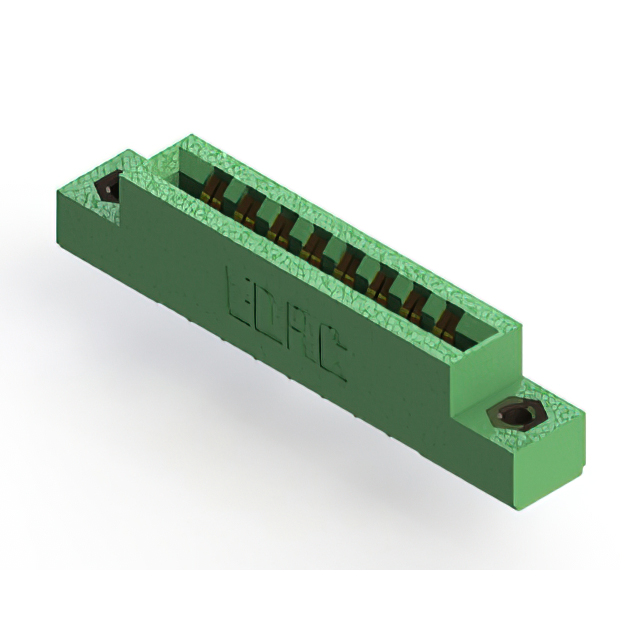

The EDAC 306-008-521-107 is a standard card edge connector header featuring 8 positions in a single row. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed for printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic material, providing necessary insulation and mechanical stability for panel-mounted vertical installations.

Edgeboard Connectors Feature Summary

• Single centerline row configuration for simplified board layout
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Vertical panel mount style for secure structural integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device internal circuitry
• Consumer electronics mainboards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, plating type, and mounting style. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm RoHS compliance status if required by project specifications. Cross-reference the Mouser part number 587-306-008-521-107 for accurate sourcing details.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row header is required for 0.156-inch spaced card edges. It is suitable for applications demanding vertical panel mounting rather than through-hole PCB insertion. Consider the 5 A current rating and thermal limits when designing for high-power environments. Verify that the mating card edge thickness aligns with the specified 0.062-inch nominal requirement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its 3.96 mm pitch and versatile mounting options. The 306 series provides a balance of electrical performance and mechanical durability, widely used in general-purpose electronic assemblies where reliable card-to-board connections are essential.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 306-008-521-102, which differs primarily in mounting style and row configuration. Verify dimensional compatibility and electrical ratings before substitution. No other cross-series replacements are confirmed without additional engineering validation.
