306-009-500-158

Edgeboard Connectors Overview

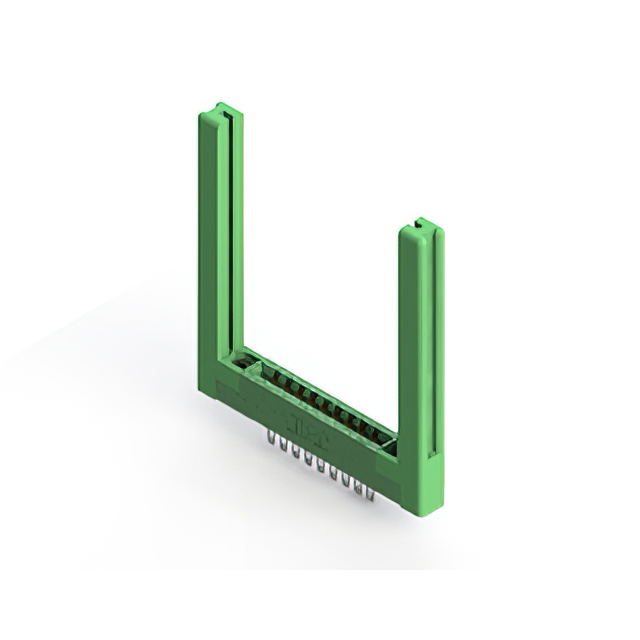

The EDAC Inc. model 306-009-500-158 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. It features an 18-position female configuration with dual edge contact termination, ensuring secure mating with printed circuit boards. The component utilizes a 0.156-inch (3.96mm) pitch and supports a board thickness of 1.57mm. Constructed with copper alloy contacts finished in gold plating, it provides durable conductivity. The housing is made from green thermoplastic material, offering structural integrity.

Edgeboard Connectors Feature Summary

• Dual edge female contact design for secure PCB insertion
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic housing providing mechanical stability

Edgeboard Connectors Applications

• Standard card edge interconnect systems
• Electronic module mounting applications
• Industrial control panel connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm compatibility with target board specifications. Ensure that the dual edge female configuration aligns with the mating card requirements. Cross-reference the 0.156-inch pitch and 1.57mm board thickness constraints during integration planning to prevent mechanical mismatch.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided connection interface is required for robust signal integrity. The 18-position count suits moderate density layouts. Verify that the application environment remains within the operational temperature limits defined by the thermoplastic housing material. Confirm that the gold plating meets corrosion resistance standards for the intended usage conditions.

Edgeboard Connectors Part Context

This connector belongs to the EDAC standard card edge series, which focuses on versatile mounting options and reliable termination methods. The 306 series typically offers various row configurations and guide solutions. This specific variant emphasizes dual-edge engagement for stable electrical performance in vertical or straight panel mount scenarios.

Edgeboard Connectors FAQ

What is the contact termination type for this connector?

The connector uses a dual edge female termination design.

Does this component support single-sided or double-sided board insertion?

It is designed for dual edge insertion, engaging both sides of the card edge.
