306-009-500-178

Edgeboard Connectors Overview

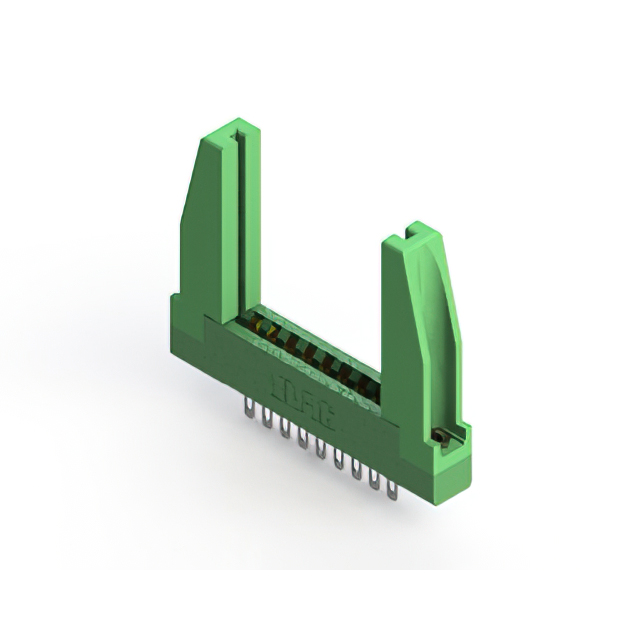

The EDAC Inc. 306-009-500-178 is a standard card edge connector receptacle featuring 9 positions with a 3.96 mm pitch. Designed for through-hole mounting in a straight configuration, it accepts printed circuit boards with a thickness of 1.57 mm. The contacts are constructed from copper alloy and gold plated to ensure reliable signal transmission. Rated for 5 A current, the unit utilizes a thermoplastic polyester insulator body.

Edgeboard Connectors Feature Summary

• Single centerline row design accommodating .062 inch nominal PCB thickness
• Low profile insulator body construction for compact assembly integration
• Gold-plated copper alloy contacts providing corrosion resistance and conductivity

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Consumer electronics module insertion points

Edgeboard Connectors Procurement Notes

Verify the specific pin count against project requirements, as datasheet listings may vary between 9 and 18 positions for this series. Confirm RoHS compliance status directly with the manufacturer or authorized distributor before finalizing procurement orders to ensure adherence to environmental regulations.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface with a 3.96 mm spacing is required. Ensure the mating PCB thickness matches the 1.57 mm specification. Consider the straight through-hole mounting style for panel or board-to-board applications requiring robust mechanical retention.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles. The 306-009 variant specifically provides a nine-position configuration, distinguishing it from higher-count models like the 306-015 or 306-043 within the same product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 306 series connectors with matching 3.96 mm pitch and 1.57 mm board thickness. Verify equivalent current ratings and contact plating specifications when evaluating alternative part numbers from different manufacturers.
