306-010-420-107

Edgeboard Connectors Overview

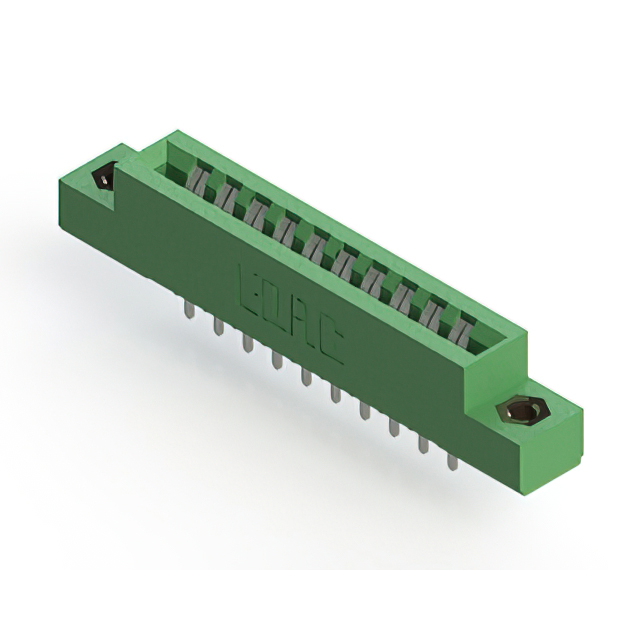

The EDAC Inc. 306-010-420-107 is a standard card edge connector receptacle featuring 10 positions with a 3.96 mm pitch. Designed for panel mount installation at a vertical angle, it accommodates a board thickness of 1.57 mm. The contacts are constructed from copper alloy with gold plating, rated for 5 A current. The housing utilizes thermoplastic polyester insulation, ensuring reliable electrical performance in standard industrial applications.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure integration
• Gold-plated copper alloy contacts for conductivity
• Thermoplastic polyester housing for durability

Edgeboard Connectors Applications

• Industrial control panels
• Electronic equipment interconnects
• Standard card edge circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the required contact count and pitch align with the target PCB design. Confirm that the panel mounting style and vertical orientation meet the mechanical constraints of the assembly environment before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a 10-position vertical card edge interface is required. The 3.96 mm pitch and 1.57 mm board thickness specifications must match the mating PCB dimensions. Verify that the 5 A current rating and gold contact plating satisfy the electrical requirements of the application circuitry.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations designed for robust electronic connections. The 306-010-420-107 specifically provides a single-row receptacle solution suitable for general-purpose industrial and commercial electronics assemblies requiring reliable signal transmission.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the EDAC 306 series for alternative position counts or mounting styles. Verify that any substitute maintains the 3.96 mm pitch and 1.57 mm board thickness compatibility to ensure proper mechanical fit and electrical continuity.
