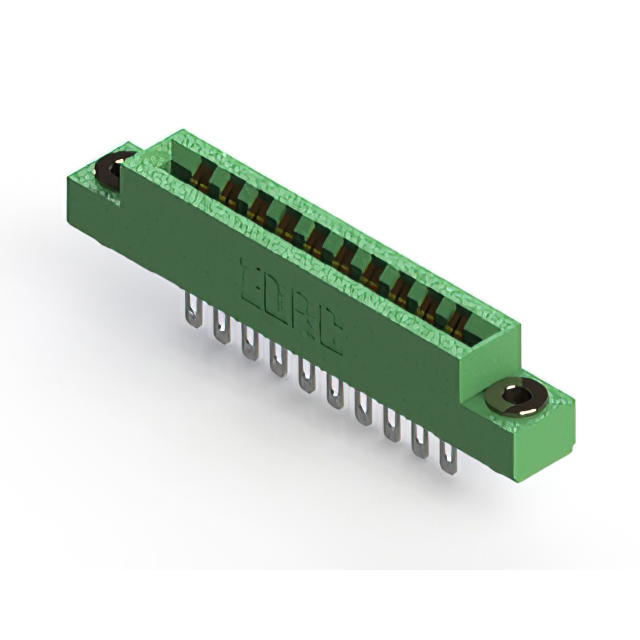

306-010-500-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-010-500-103
- Description：CONN EDGE DUAL FMALE 20POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-010-500-103
Edgeboard Connectors Overview
The EDAC Inc. 306-010-500-103 is a standard card edge connector receptacle featuring 20 positions in a dual female configuration. It utilizes a 0.156-inch (3.96mm) contact spacing and is designed for double-sided board insertion. The contacts are gold-plated to ensure reliable signal transmission, while the housing is constructed from green thermoplastic material. This component supports through-hole mounting and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board retention
- Gold-plated contacts for enhanced conductivity and corrosion resistance
- Green thermoplastic insulation housing with flush mount flange features
Edgeboard Connectors Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Consumer electronic circuit board assemblies
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange dimensions. Ensure that the selected variant matches the required operating temperature range and board thickness specifications for your application environment before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge female connector with 0.156-inch spacing is required. Consider the 20-position count and through-hole mounting style. Verify compatibility with the target PCB's double-sided card edge profile and ensure the green insulation material meets environmental requirements.
Edgeboard Connectors Part Context
This part belongs to the EDAC standard card edge connector family, designed for general-purpose electronic interconnects. The series offers various position counts and mounting styles, providing flexibility for diverse circuit board applications across multiple industries requiring robust mechanical and electrical connections.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may differ in critical dimensions such as flange diameter or contact plating specifications.
