306-011-400-102

Edgeboard Connectors Overview

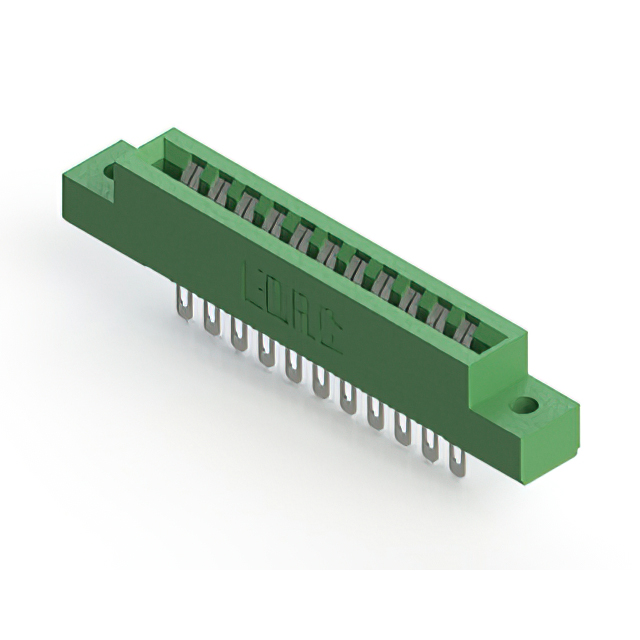

The EDAC Inc. model 306-011-400-102 is a standard card edge connector receptacle from the 306 series. It features 11 positions with a 3.96 mm pitch and accepts a nominal PCB thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts rated for 5 A current. Designed for vertical panel mount installation, it employs solder pin termination. The insulator body is constructed from thermoplastic material.

Edgeboard Connectors Feature Summary

• Single centreline row configuration with .156 inch contact spacing
• Low profile insulator body design
• Gold-plated contacts for reliable signal transmission
• Vertical orientation for panel mounting applications

Edgeboard Connectors Applications

• Card edge interconnect systems
• Industrial control panels
• Computing hardware backplanes

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with system requirements. Confirm that the 11-position configuration and 3.96 mm pitch align with the target PCB design. Check for RoHS compliance status in the latest datasheet before procurement. Ensure storage conditions meet manufacturer specifications to maintain connector integrity.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge connector with 11 positions is required. The 3.96 mm pitch suits standard board thicknesses of 1.57 mm. Consider the 5 A current rating and gold plating for durability. Verify that vertical panel mounting fits the enclosure constraints. Compare against other 306 series variants if different position counts are needed.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which provides standard card edge solutions. The series offers various position counts while maintaining consistent 3.96 mm spacing. EDAC manufactures these components for global distribution channels serving computing, industrial, and communications sectors. The product line emphasizes quality assurance and rigorous inspection standards.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the 306 series include models with identical 11-position configurations and 3.96 mm pitch. Verify mechanical dimensions and termination type match before substitution. Cross-reference official EDAC cross-reference lists for confirmed equivalent part numbers.
